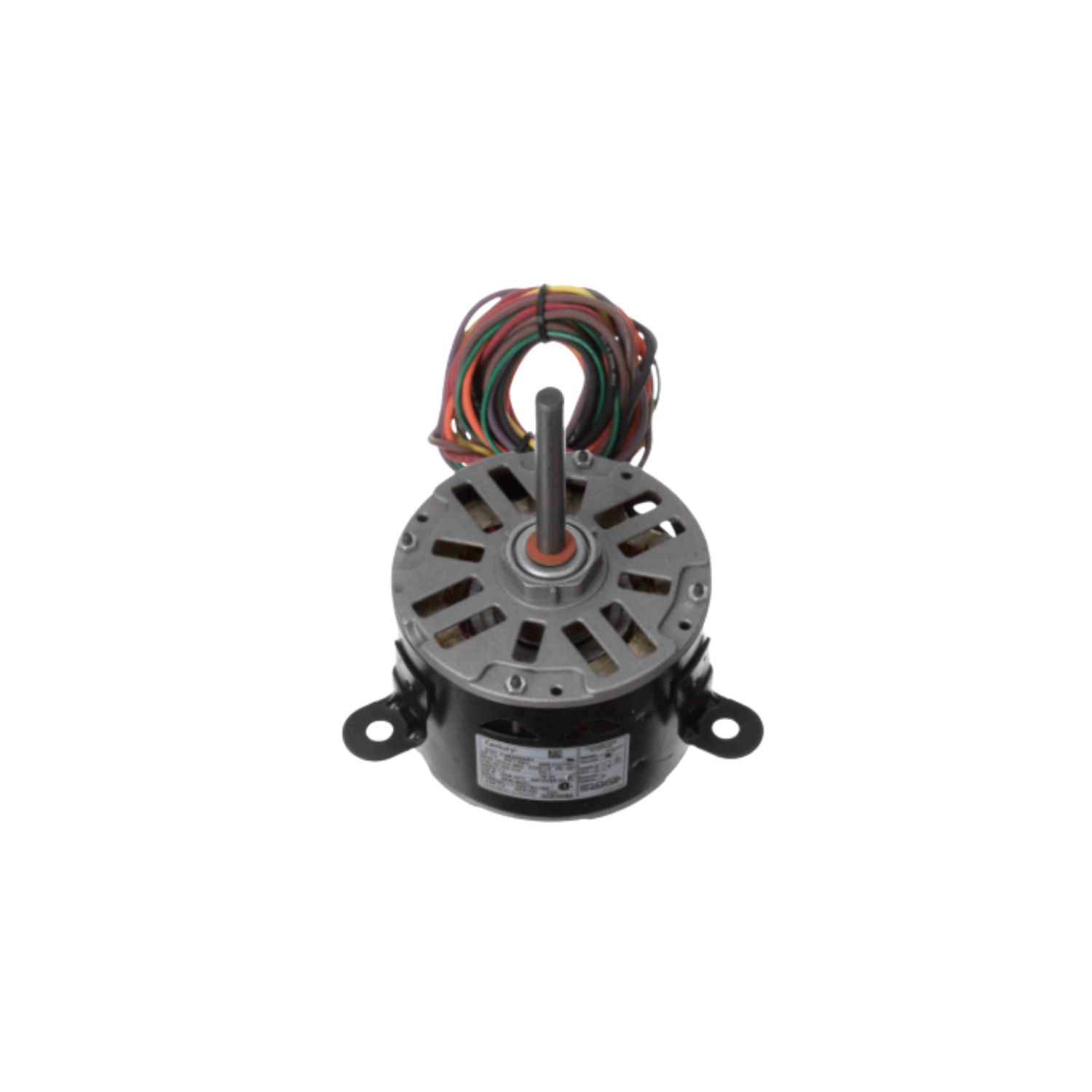

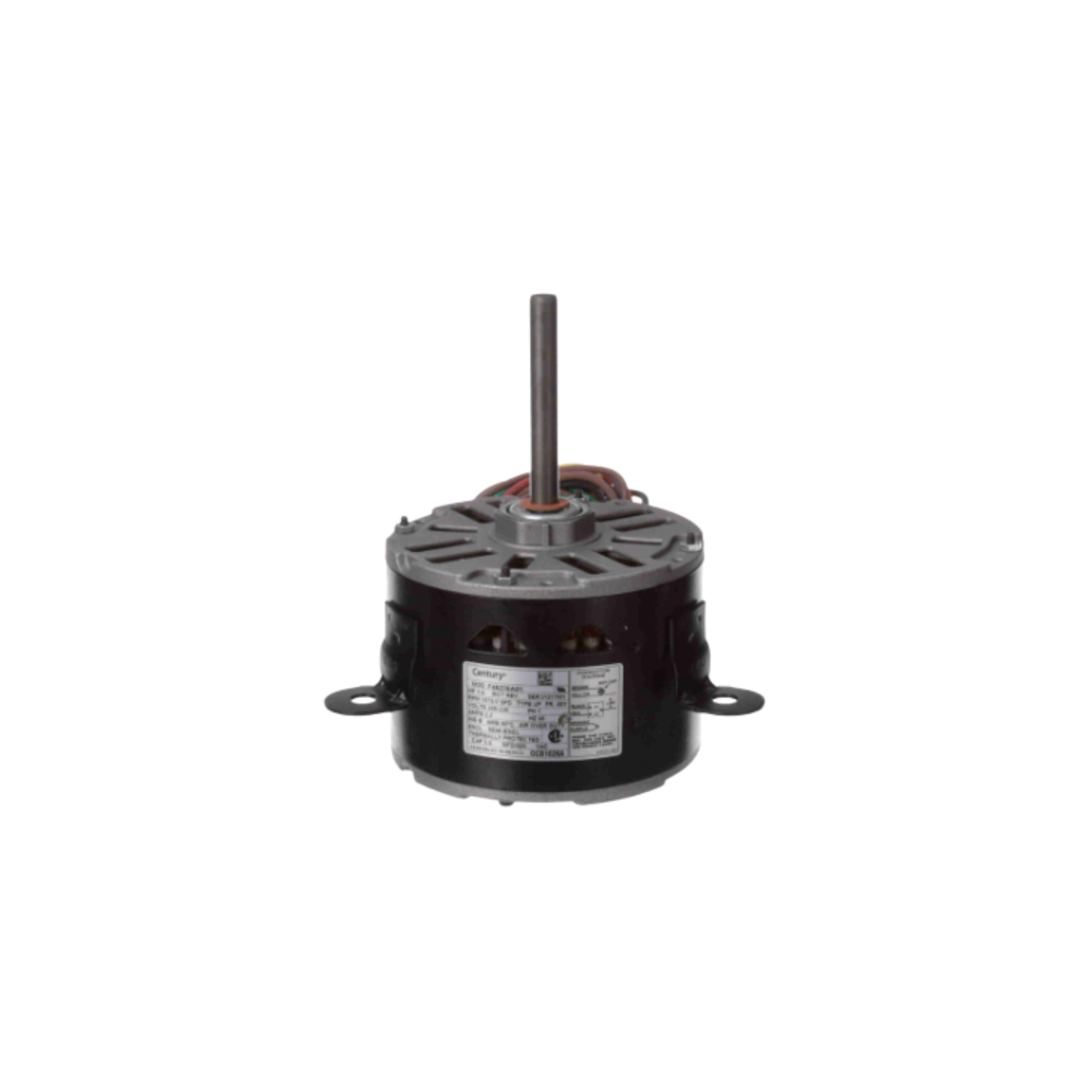

Regal Rexnord - Century Motors OCB1026A 208-230 V 60 Hz 1075 RPM 1/4 HP Reversible Motor

Features:

OEM Direct Replacement Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-440 Volts (Not Supplied with Motor)
Thermally Protected
Open Shaft End and Opposite Shaft End End-Frame, Semi-Enclosed Shell, Air over
Class B Insulation, 60°C Ambient
Sleeve Bearing
1/2" Diameter Shaft with Flat
53" Leads with Female Spade Terminals
Lug Mount

Specifications:

Manufacturer: Regal Rexnord - Century Motors
Manufacturer Part Number: OCB1026A
Product Type: Motor
Voltage Rating: 208-230 V
Frequency Rating: 60 Hz
Current Rating: 2.2 A
Motor Size: 1/4 HP
Frame Size: 48Y
RPM: 1075
No. of Phase: 1
No. of Pole: 6
No. of Speed: 2
Enclosure: Semi Enclosed
Mounting: Lug
Rotation: Reversible
Dimensions: 11.0" x 11.0"x 10.0"
Weight: 17.0 lb.
