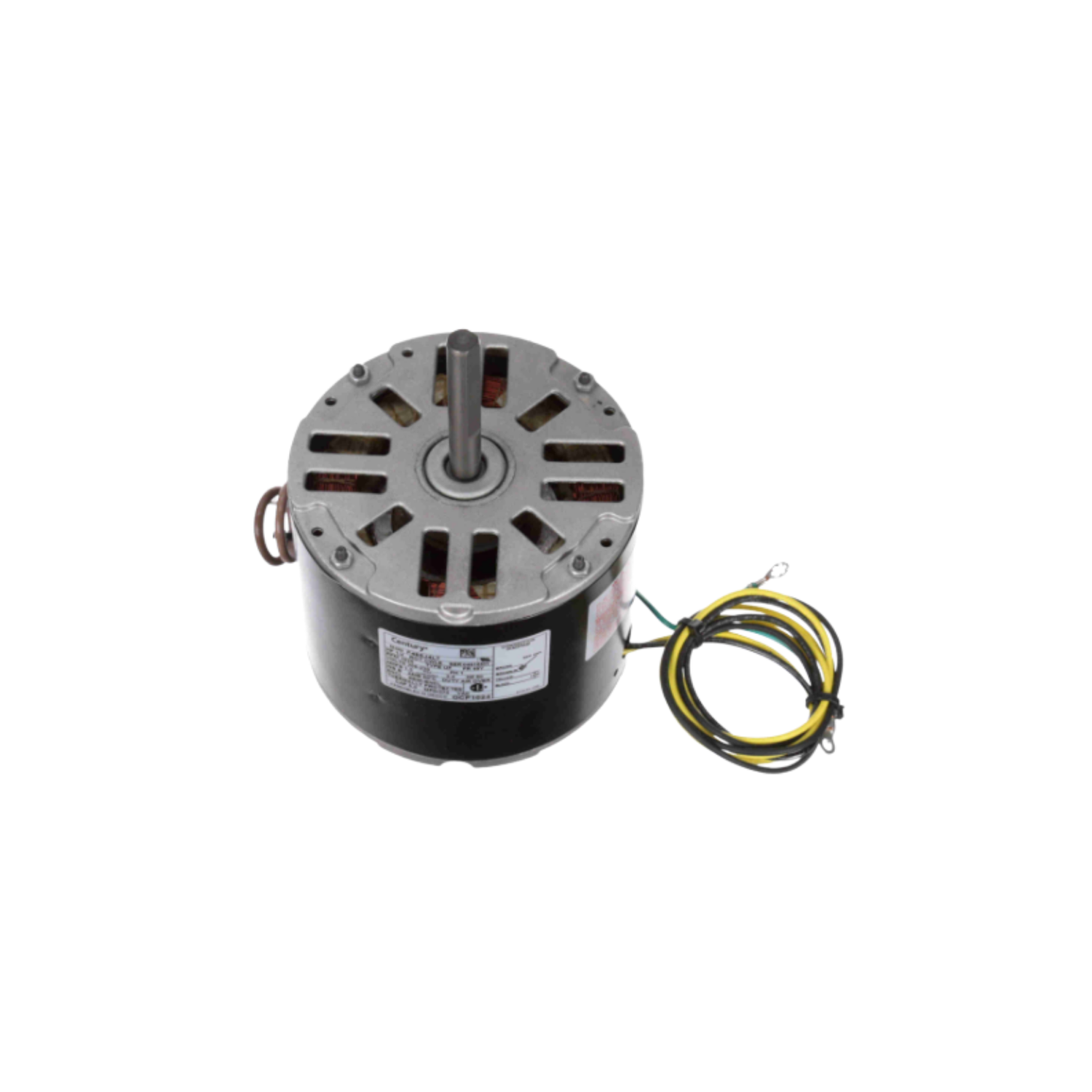

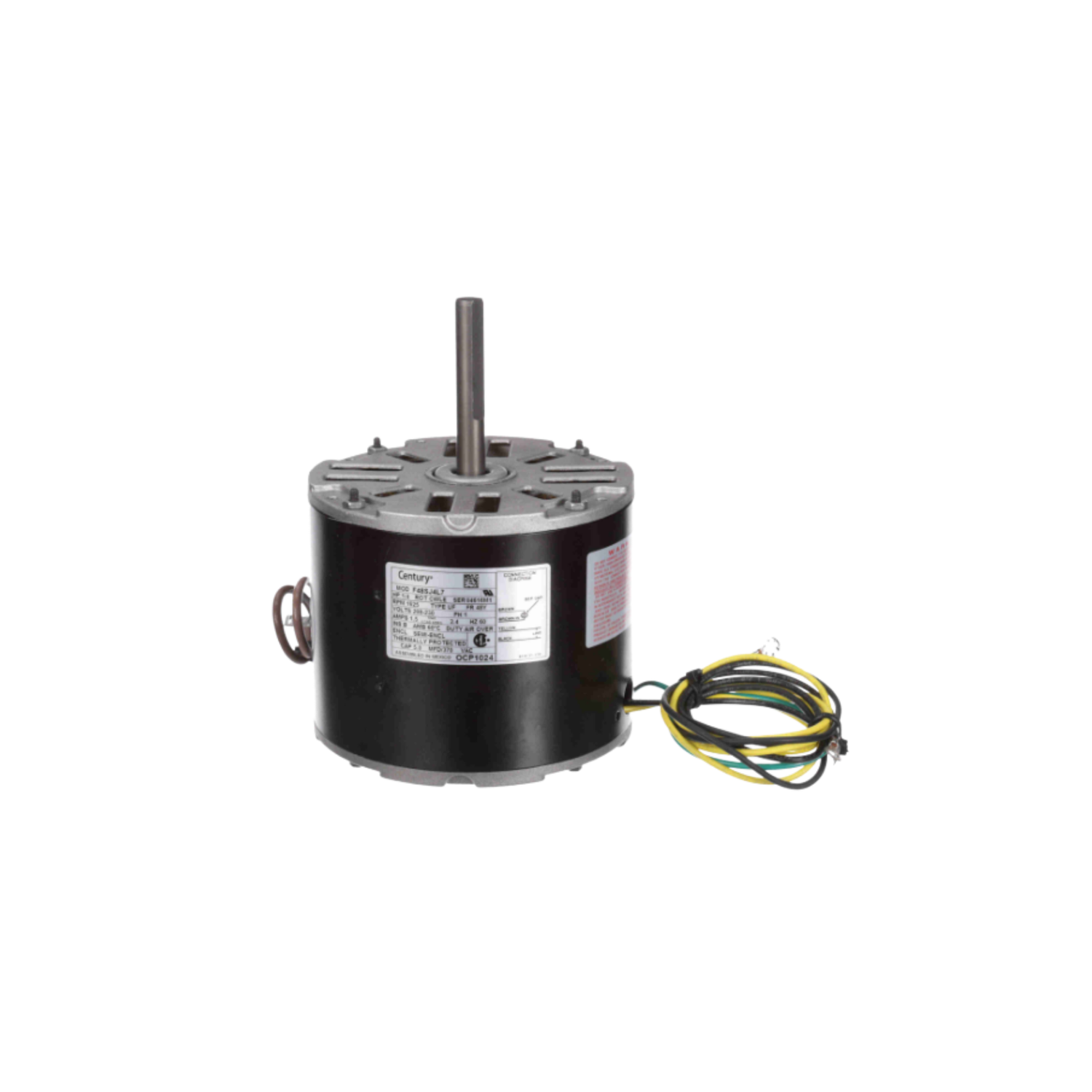

Regal Rexnord - Century Motors OCP1024 208-230 V 60 Hz 1625 RPM 1/4 HP Clockwise Motor
Have a question? Our team is here to help! Chat with us or call us: 806-763-9323 / If you need Next Day Shipping, call us!
Sign up to be the first to know when it's back in stock.
Pickup currently unavailable at Snook & Aderton, Inc
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Most parts ship same day and arrive within two days.
Features:
OEM Direct Replacement Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Shaft End and Opposite Shaft End End-Frame, Enclosed Shell, Air Over
Class B Insulation, 60°C Ambient
Sleeve Bearing
1/2" Diameter Shaft with Double Flat
34.5" Leads with #10 Eyelet
Belly Band Mount (Belly Band Not Included)
Specifications:
Manufacturer: Regal Rexnord - Century Motors
Manufacturer Part Number: OCP1024
Product Type: Motor
Voltage Rating: 208-230 V
Frequency Rating: 60 Hz
Current Rating: 1.5 A
Motor Size: 1/4 HP
Frame Size: 48Y
RPM: 1625
No. of Phase: 1
No. of Pole: 4
No. of Speed: 1
Enclosure: Open Air Over
Mounting: Round Belly Band
Rotation: Clockwise
Dimensions: 13.18" x 7.25" x 7.37"
Weight: 12.0 lb.
