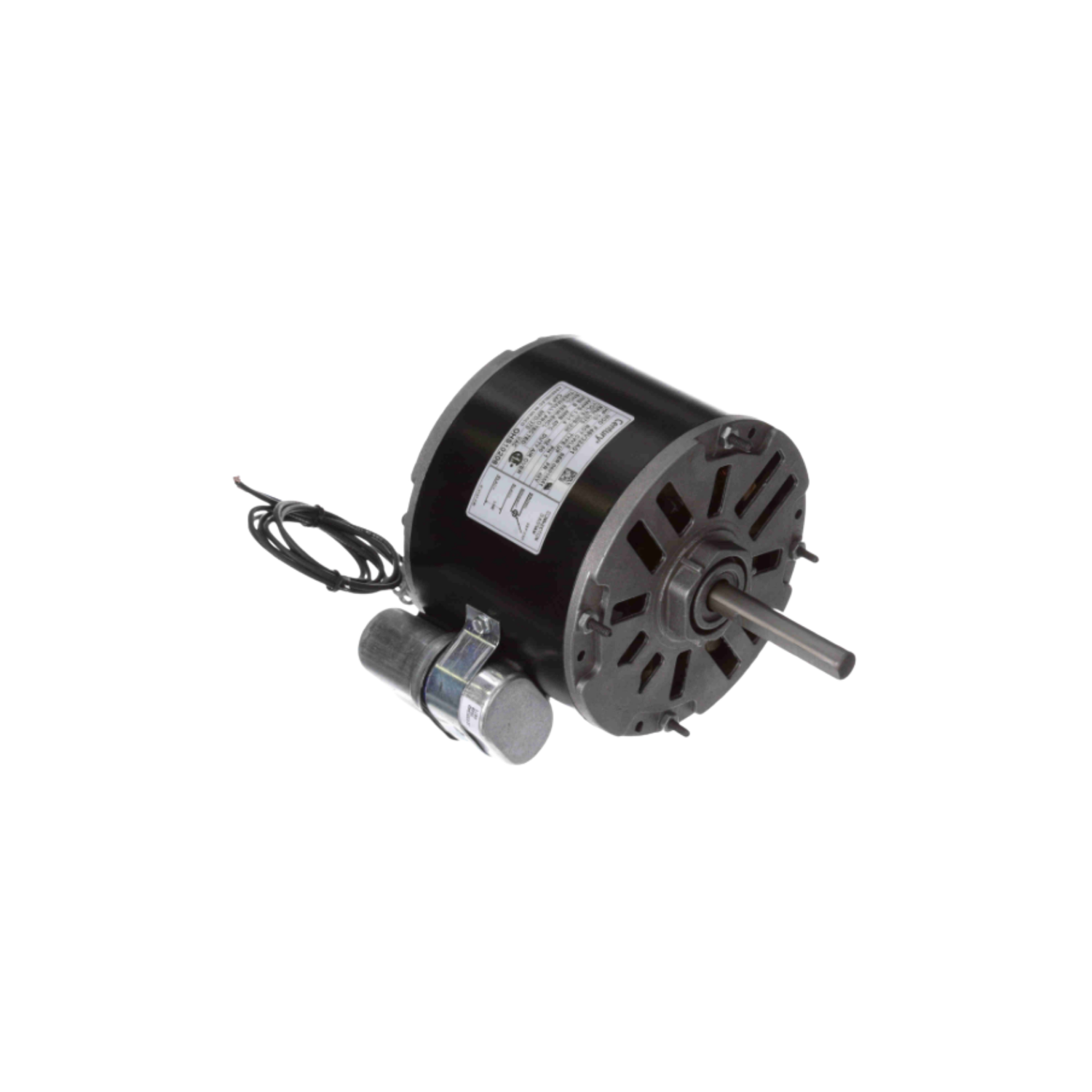

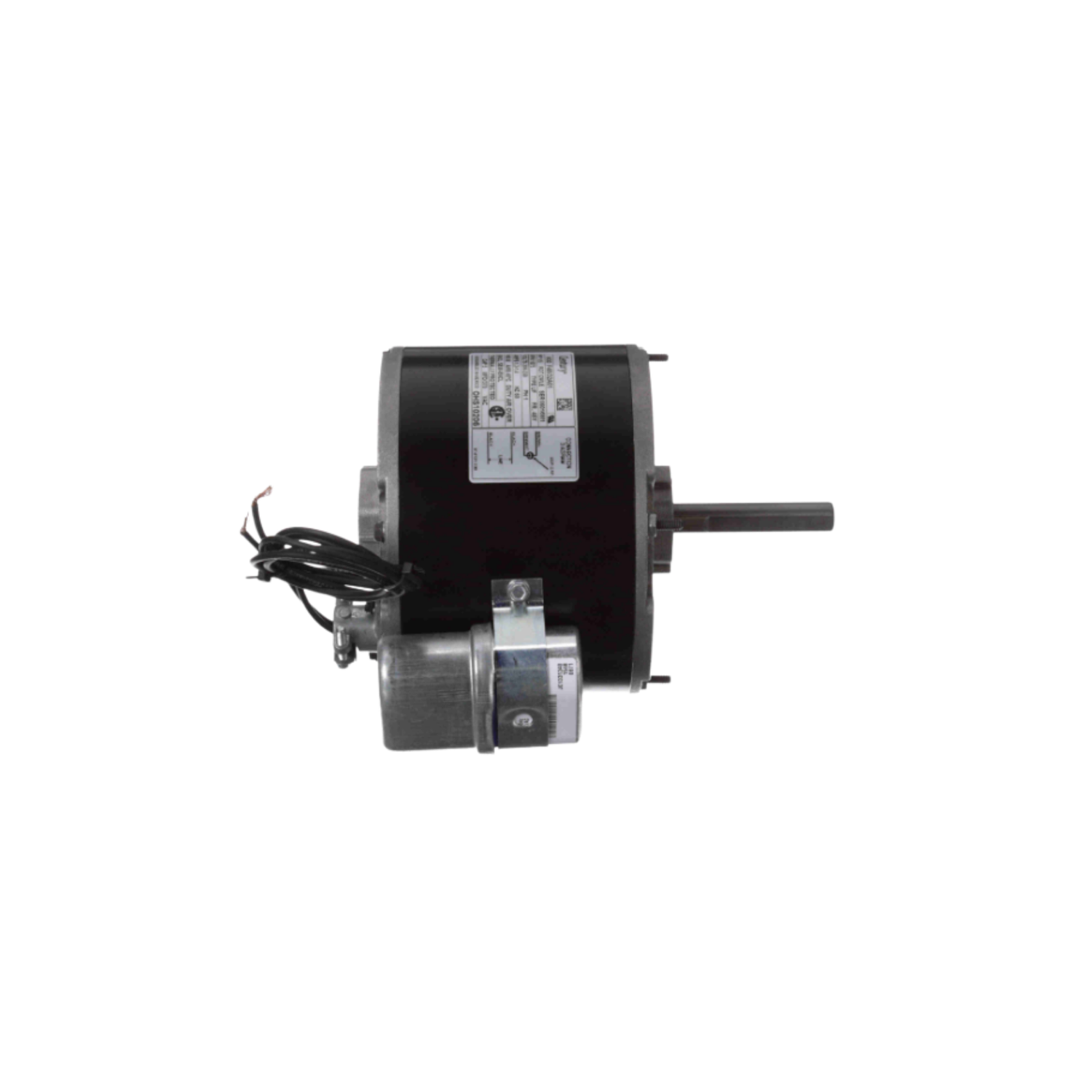

Regal Rexnord - Century Motors OHS10206 208-230 V 60 Hz 1075 RPM 1/5 HP Clockwise Motor

Features:

OEM Direct Replacement Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2" Diameter Shaft with Flat
23" Leads
Hex Mounting HubShaft End and Lead End, Extended Studs Shaft End

Specifications:

Manufacturer: Regal Rexnord - Century Motors
Manufacturer Part Number: OHS10206
Product Type: Motor
Voltage Rating: 208-230 V
Frequency Rating: 60 Hz
Current Rating: 1.3-1.4 A
Motor Size: 1/5 HP
Frame Size: 48Y
RPM: 1075
No. of Phase: 1
No. of Pole: 6
No. of Speed: 1
Enclosure: Semi Enclosed
Mounting: Extended Studs
Rotation: Clockwise
Dimensions: 9.0" x 9.0" x 7.0"
Weight: 12.0 lb.
