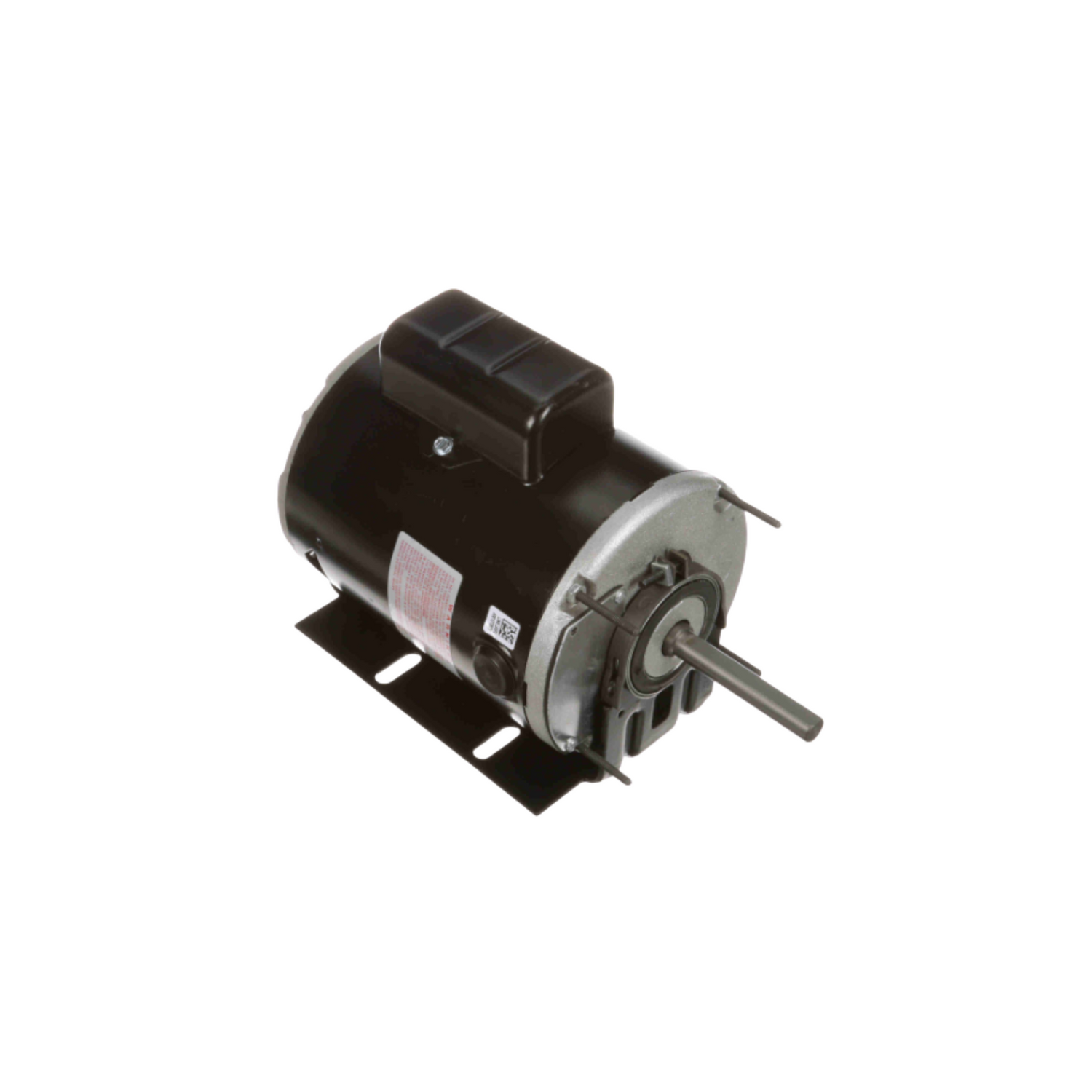

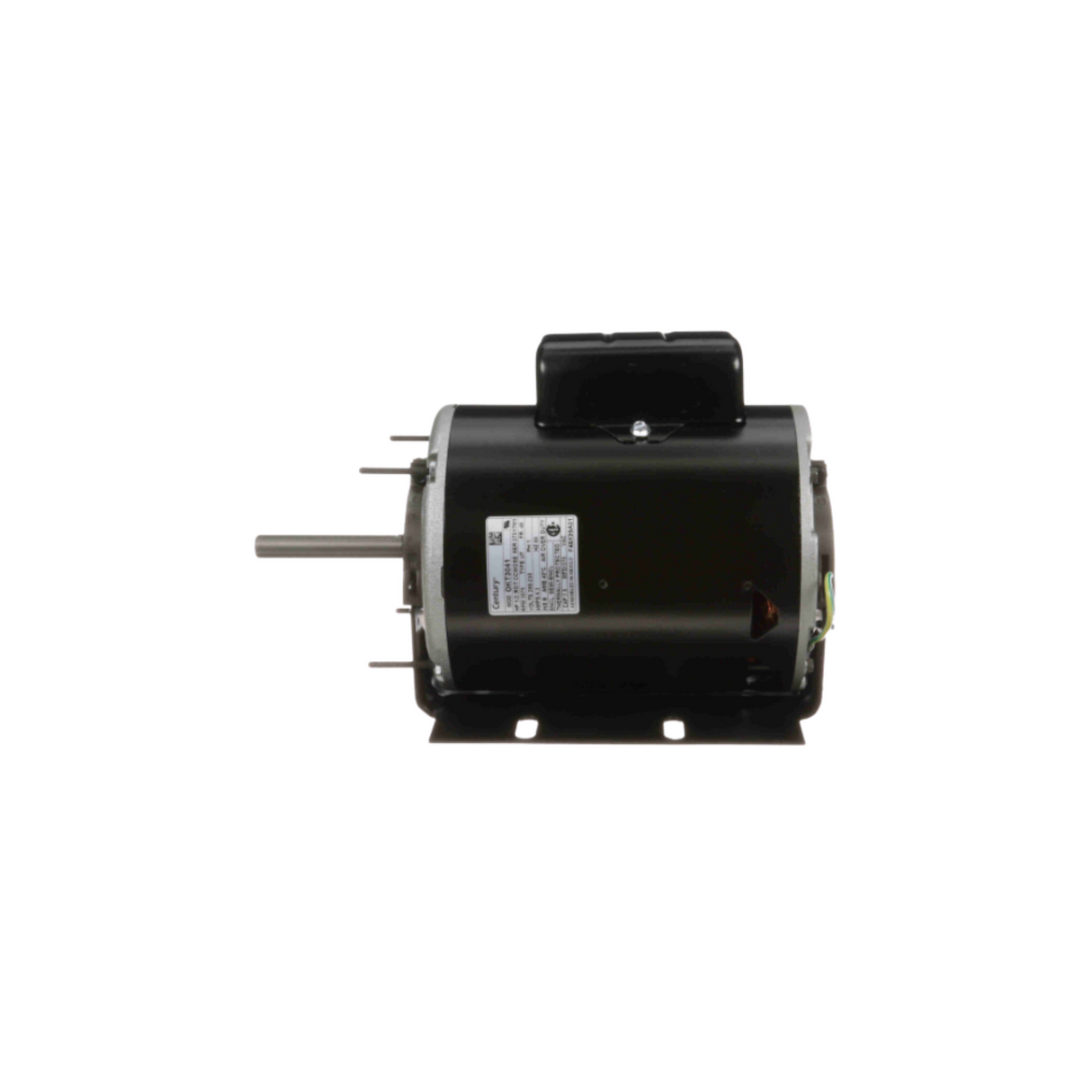

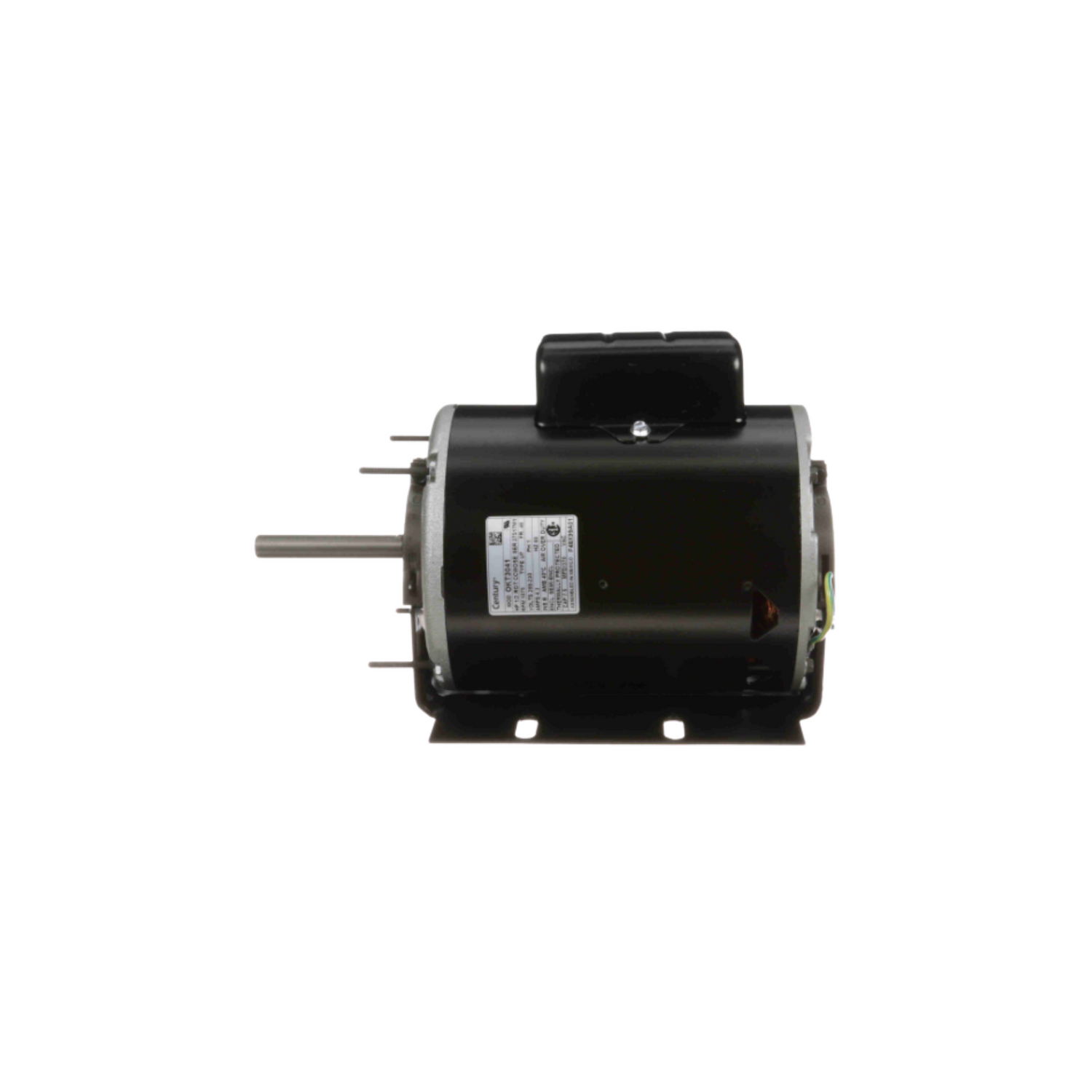

Regal Rexnord - Century Motors OKT3041 208-230 V 60 Hz 1075 RPM 1/2 HP Counter Clockwise Motor

Features:

OEM Direct Replacement Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Opposite Shaft End End-Frame, Enclosed Shaft End End-Frame, Semi-Enclosed Shell, Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2" Diameter Shaft with Flat
1/2" Conduit with Plug
Resilient Base

Specifications:

Manufacturer: Regal Rexnord - Century Motors
Manufacturer Part Number: OKT3041
Product Type: Motor
Voltage Rating: 208-230 V
Frequency Rating: 60 Hz
Current Rating: 4.3 A
Motor Size: 1/2 HP
Frame Size: 48
RPM: 1075
No. of Phase: 1
No. of Pole: 6
No. of Speed: 1
Enclosure: Semi Enclosed
Mounting: Resilient Base
Rotation: Counter Clockwise
Dimensions: 13.0" x 7.0" x 10.0"
Weight: 21.0 lb.
