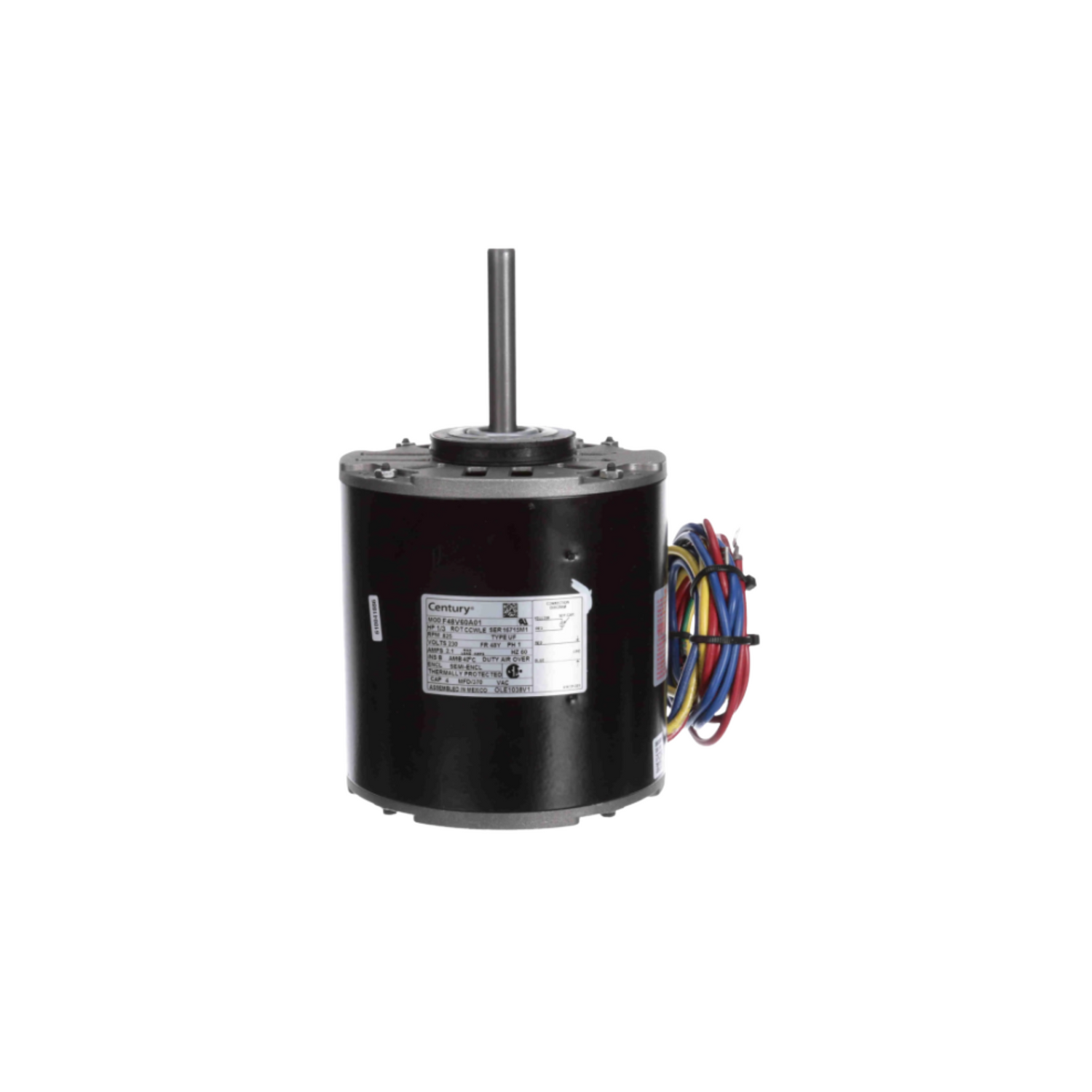

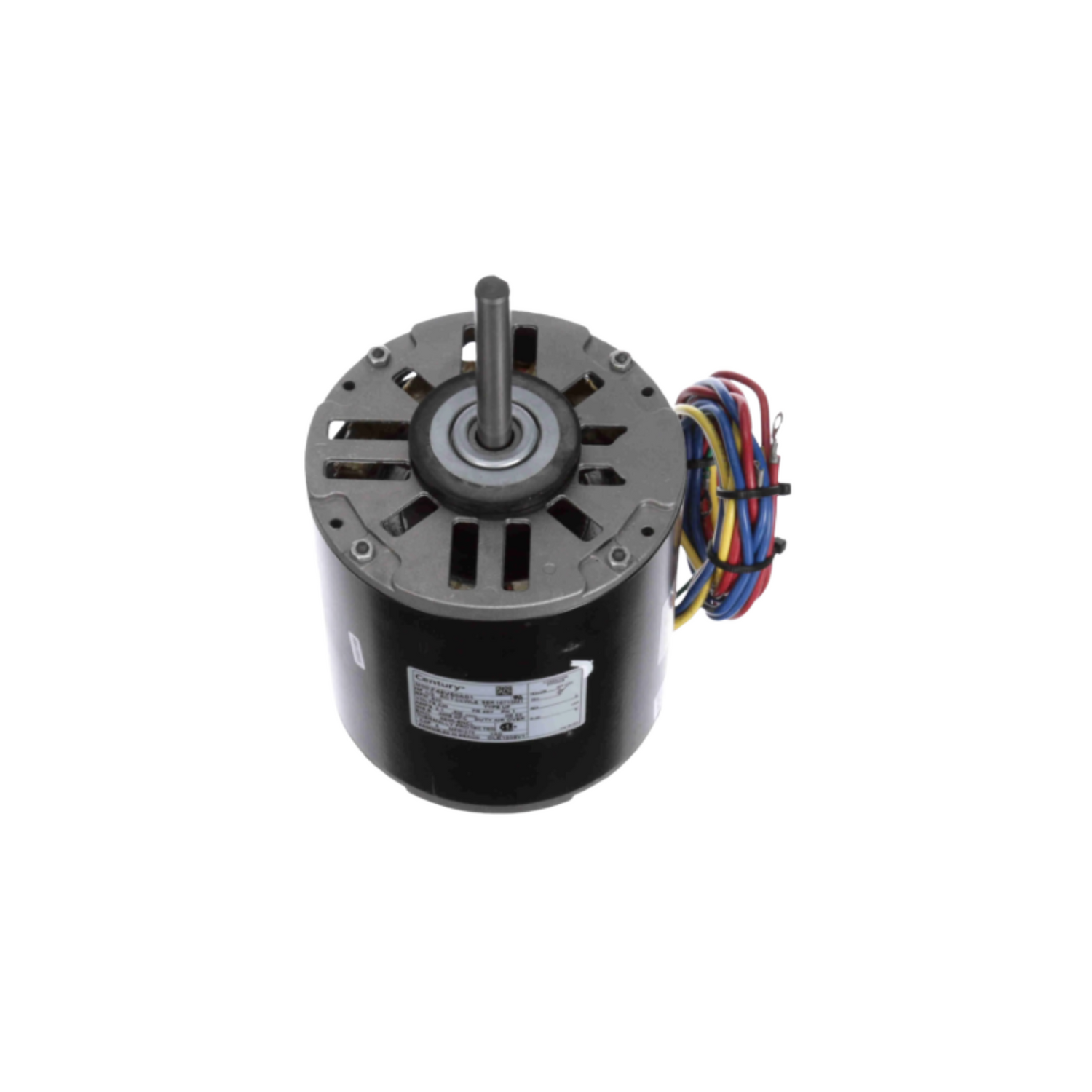

Regal Rexnord - Century Motors OLE1038V1 230 V 60 Hz 825 RPM 1/3 HP Counter Clockwise Motor

Features:

OEM Direct Replacement Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Shaft End and Lead End End-Frame, Semi-Enclosed, Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2" Diameter Shaft with Flat
27" Leads with Female Spade Terminal, 48" Lead with Female Spade Terminal, 48" Lead with #10 Eyelet
Resilient Mounting Ring Shaft End and Lead End, Belly Band Mounting (Belly Band Not Included)

Specifications:

Manufacturer: Regal Rexnord - Century Motors
Manufacturer Part Number: OLE1038V1
Product Type: Motor
Voltage Rating: 230 V
Frequency Rating: 60 Hz
Current Rating: 2.1 A
Motor Size: 1/3 HP
Frame Size: 48Y
RPM: 825
No. of Phase: 1
No. of Pole: 8
No. of Speed: 1
Enclosure: Semi Enclosed
Mounting: Resilient Rings
Rotation: Counter Clockwise
Dimensions: 12.18" x 7.31" x 7.37"
Weight: 18.0 lb.
