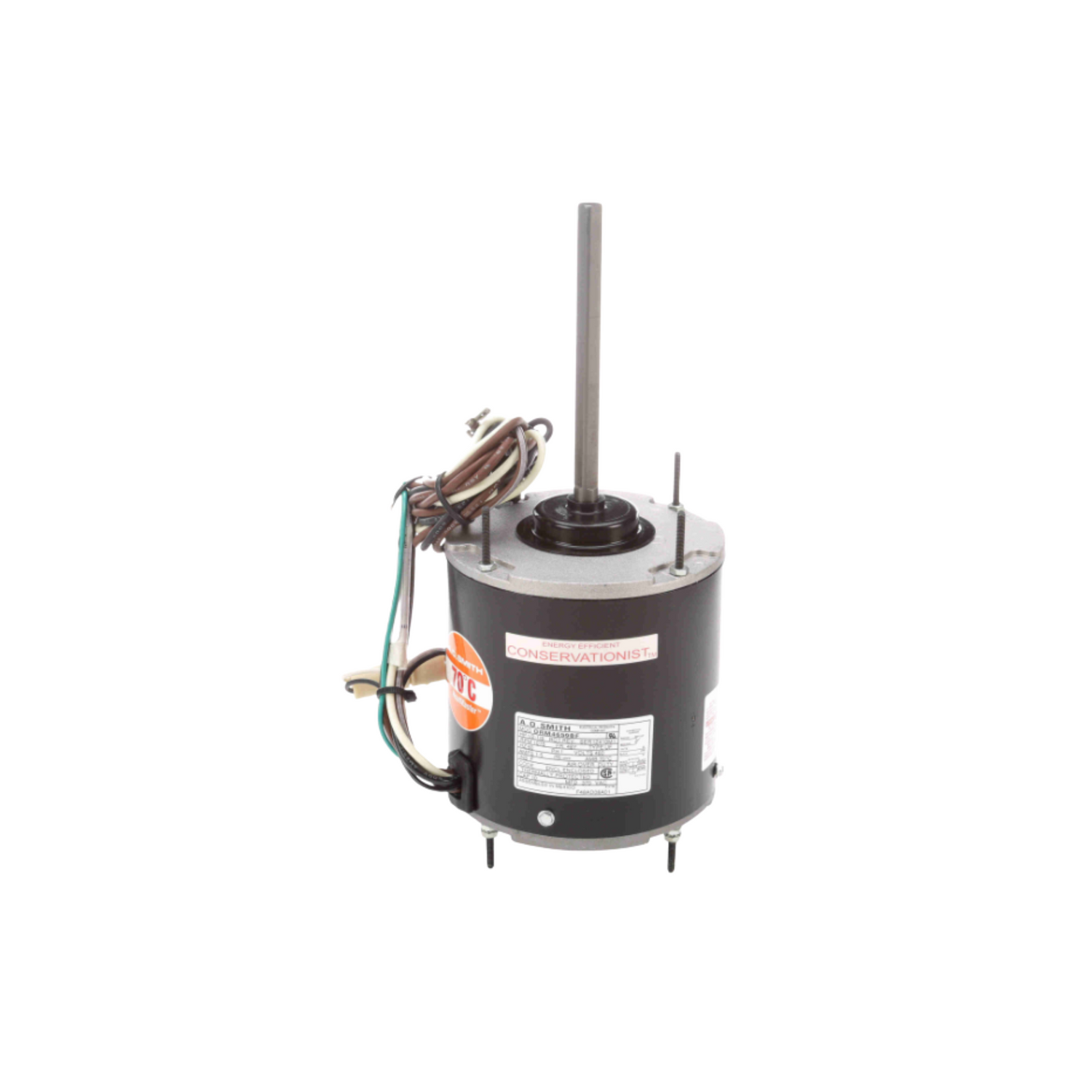

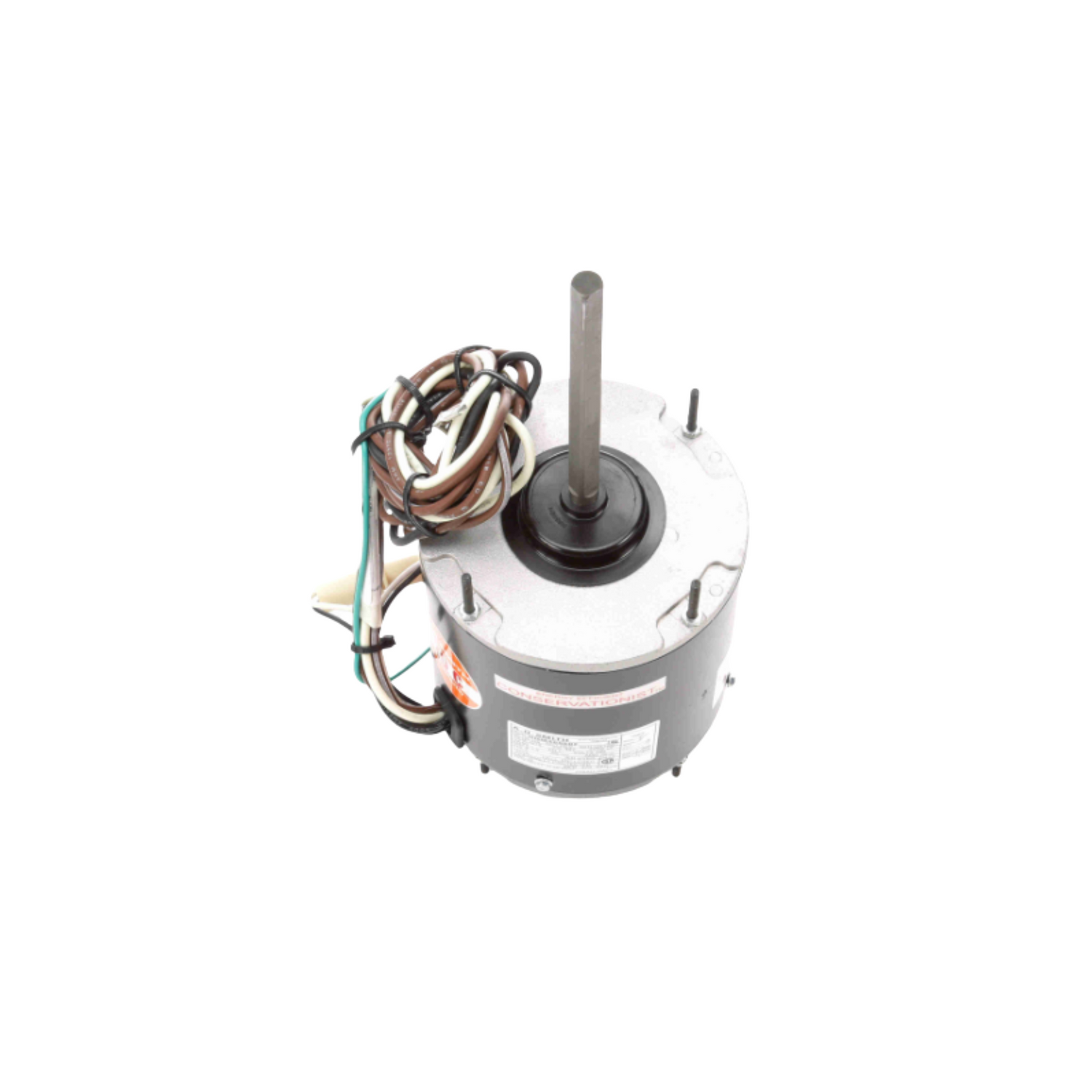

Regal Rexnord - Century Motors ORM4659BF 460 V 60 Hz 1075 RPM 1/2-1/5 HP Reversible Motor
Have a question? Our team is here to help! Chat with us or call us: 806-763-9323 / If you need Next Day Shipping, call us!
Pickup currently unavailable at Snook & Aderton, Inc
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Most parts ship same day and arrive within two days.
Regal Rexnord - Century Motors ORM4659BF 460 V 60 Hz 1075 RPM 1/2-1...
Features:
4-in-1 HeatMaster - Condenser Fan Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class F Insulation, 70°C Ambient
Ball Bearing
1/2" Diameter Shaft with Double Flat
48" Leads
Extended Studs Shaft End and Lead End, Mounting Holes in Shell, Belly Band Mount (Belly Band Not Included)
Specifications:
Manufacturer: Regal Rexnord - Century Motors
Manufacturer Part Number: ORM4659BF
Product Type: Motor
Voltage Rating: 460 V
Frequency Rating: 60 Hz
Current Rating: 1.5 A
Motor Size: 1/2-1/5 HP
Frame Size: 48
RPM: 1075
No. of Phase: 1
No. of Pole: 6
No. of Speed: 1
Enclosure: Totally Enclosed
Mounting: Extended Studs
Rotation: Reversible
Dimensions: 12.18" x 7.31" x 7.37"
Weight: 19.0 lb.
