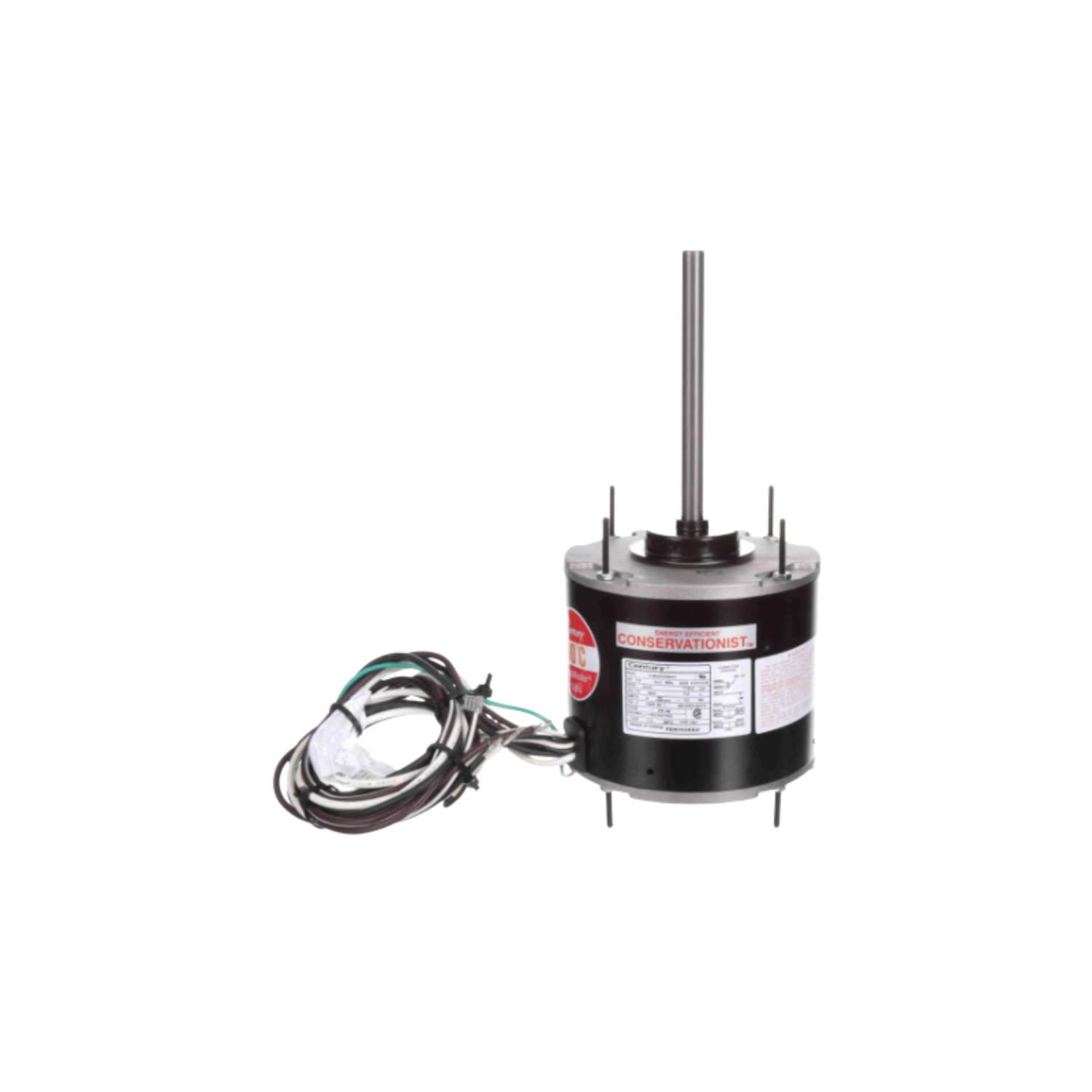

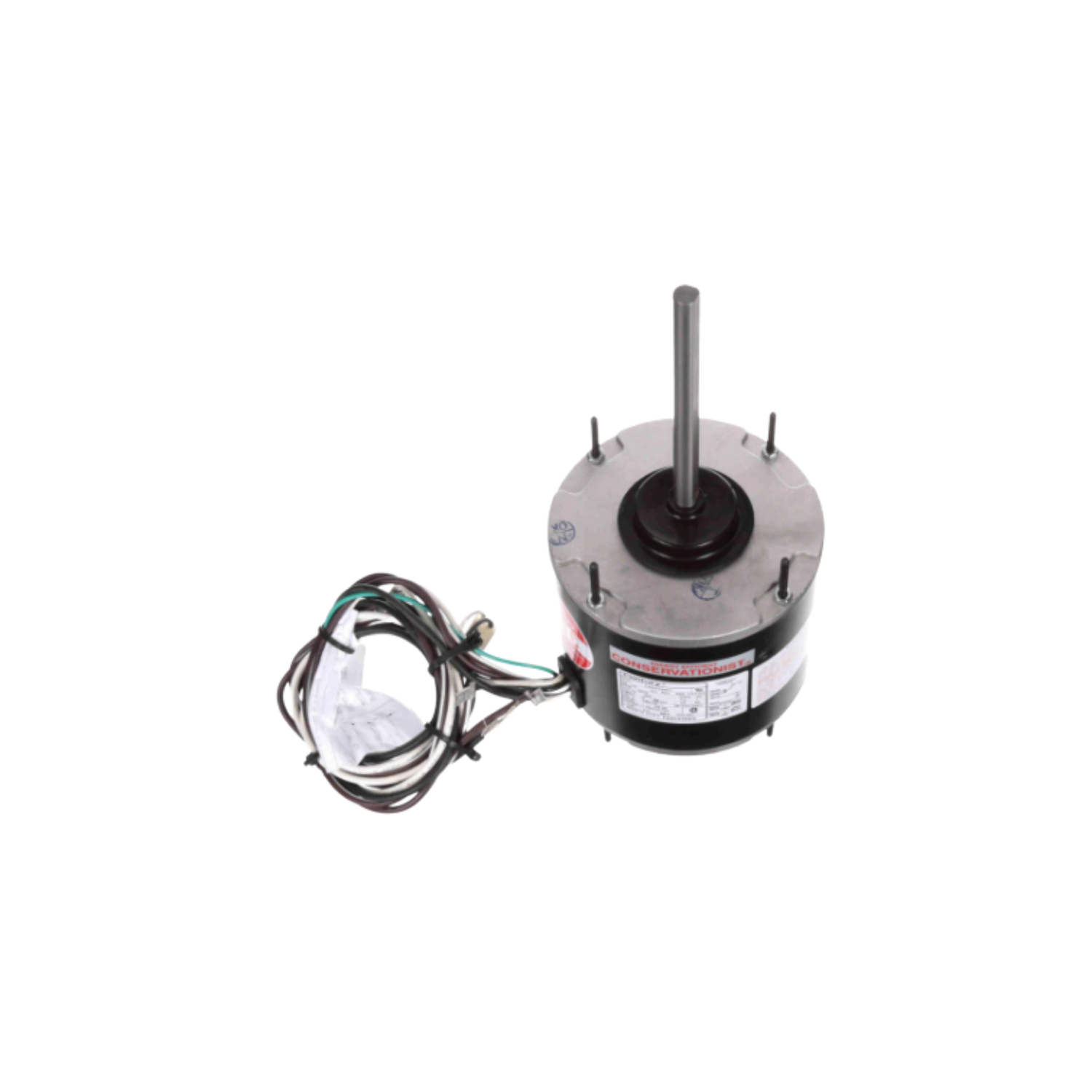

Regal Rexnord - Century Motors ORM4688BU 460 V 60 Hz 825 RPM 1/3-1/8 HP Reversible Motor
Have a question? Our team is here to help! Chat with us or call us: 806-763-9323 / If you need Next Day Shipping, call us!
Sign up to be the first to know when it's back in stock.
Pickup currently unavailable at Snook & Aderton, Inc
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Most parts ship same day and arrive within two days.
Features:
4-in-1 HeatMaster Ultra - Condenser Fan Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class F Insulation, 80°C Ambient
Ball Bearing
1/2" Diameter Shaft with Double Flat
48" Leads
Extended Studs Shaft End and Opposite Shaft End, Mounting Holes in Shell, 4.33BC on Opposite Shaft End End-Frame, Belly Band Mount (Belly Band Not Included)
Specifications:
Manufacturer: Regal Rexnord - Century Motors
Manufacturer Part Number: ORM4688BU
Product Type: Motor
Voltage Rating: 460 V
Frequency Rating: 60 Hz
Current Rating: 1.0 A
Motor Size: 1/3-1/8 HP
Frame Size: 48
RPM: 825
No. of Phase: 1
No. of Pole: 8
No. of Speed: 1
Enclosure: Totally Enclosed Air Over
Mounting: Extended Studs
Rotation: Reversible
Dimensions: 15.5" x 6.5" x 6.8"
Weight: 16.1 lb.
