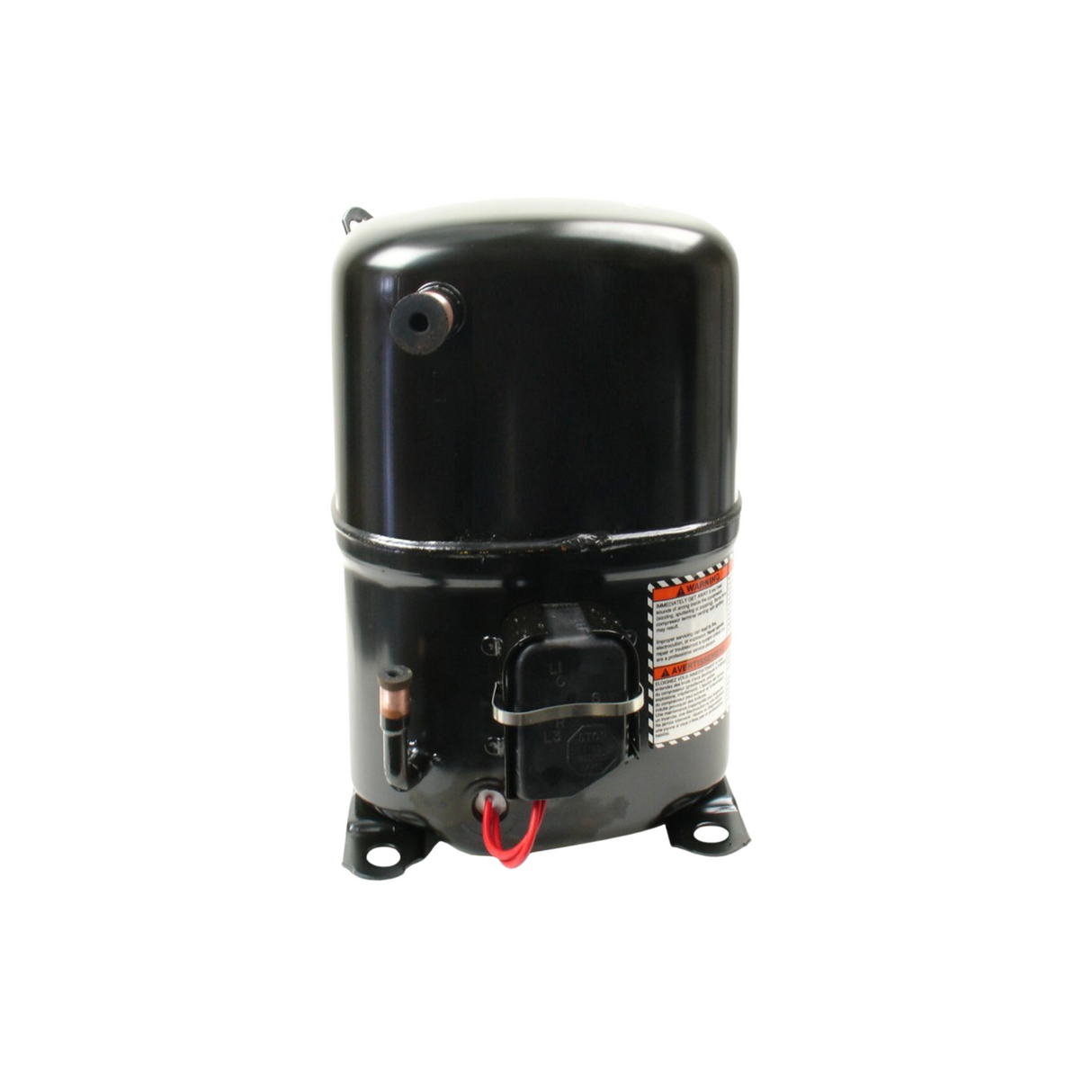

Rheem 55-23156-22S 220 V 83000 BTU/hr Scroll Compressor

Copeland scroll compressors work with one scroll orbiting in a path defined by a matching fixed scroll. The fixed scroll is attached to the compressor body while the orbiting scroll is coupled to the crankshaft. The orbiting motion creates a series of gas pockets traveling between the two scrolls. On the outer portion of the scrolls, the pockets draw in gas then move it to the center of the scroll where it's discharged. As the gas moves into the scroll's center, the temperature and pressure increase to the desired discharge pressure.

Features:

5th generation fixed speed compressor
Improved temperature protection
Internal pressure protection
R-410A ready
Proven performance and reliability
High efficiency motor
For residential and light commercial applications

Specifications:

Manufacturer: Rheem
Manufacturer Part Number: 55-23156-22S
Product Type: Scroll Compressor
Input Voltage: 220 V
No. of Phase: 3
Frequency: 60 Hz
Rated Load Current: 10 A
Locked Rotor Current: 78 A
Max. Continuous Current: 14 A
Capacity: 83000 BTU/hr
Refrigerant: R410A
Crankcase Heater Included: No
Crankcase Heater Part Number: 44-17402-49
Soundwrap (Brinmar): 68-25217-10
Refrigerant Oil: POE (85-32CST)
Suction Line Location: 2
Suction Line Height: 11 3/4"
Suction Line Configuration: Stub Out
Suction Line Size: 7/8"
Discharge Line Location: 3
Discharge Line Height: 16 3/16"
Discharge Line Configuration: Stub Out
Discharge Line Size: 1/2"
Overall Compressor Height: 17 1/2"
Mounting Base Dimensions: 7 1/2" x 7 1/2"
