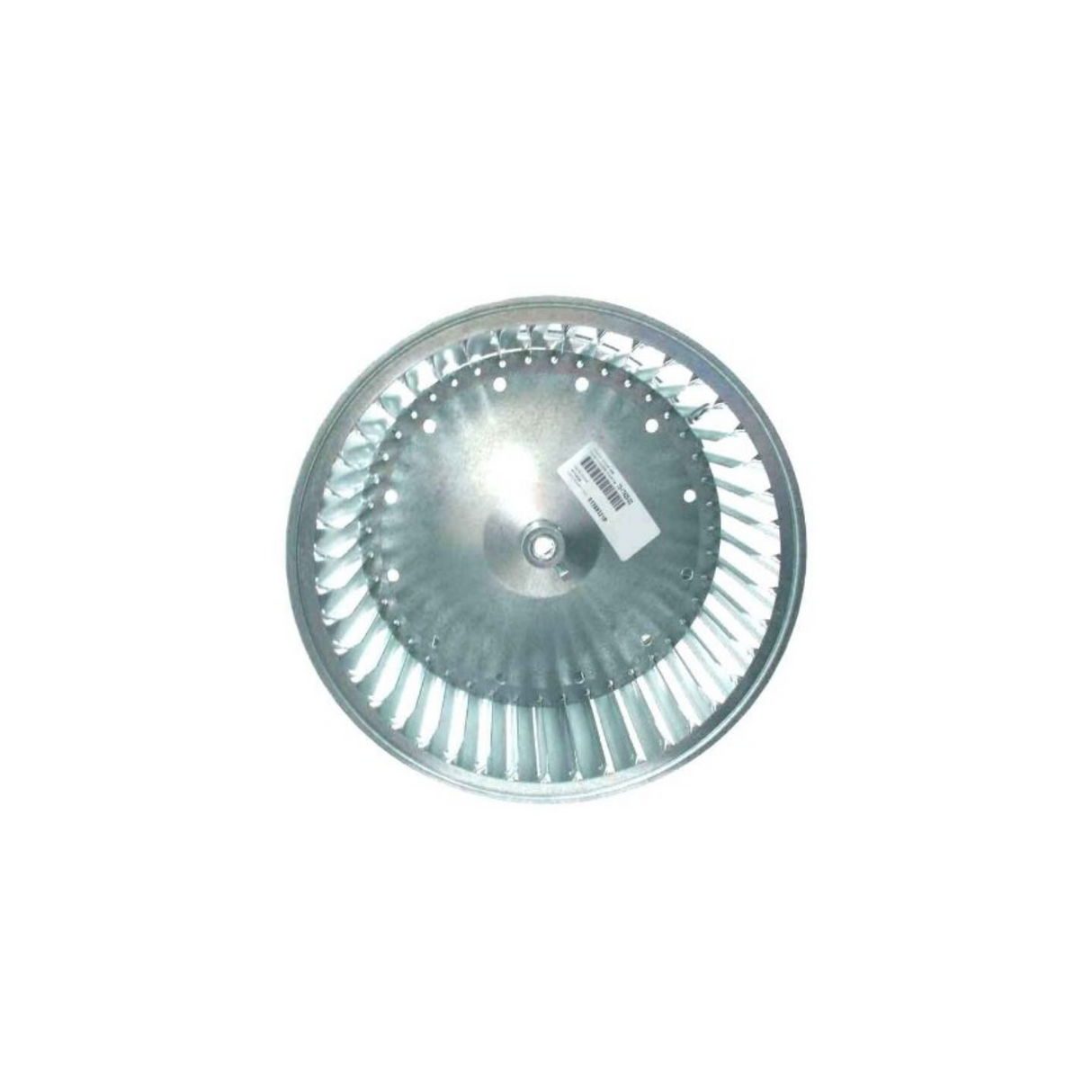

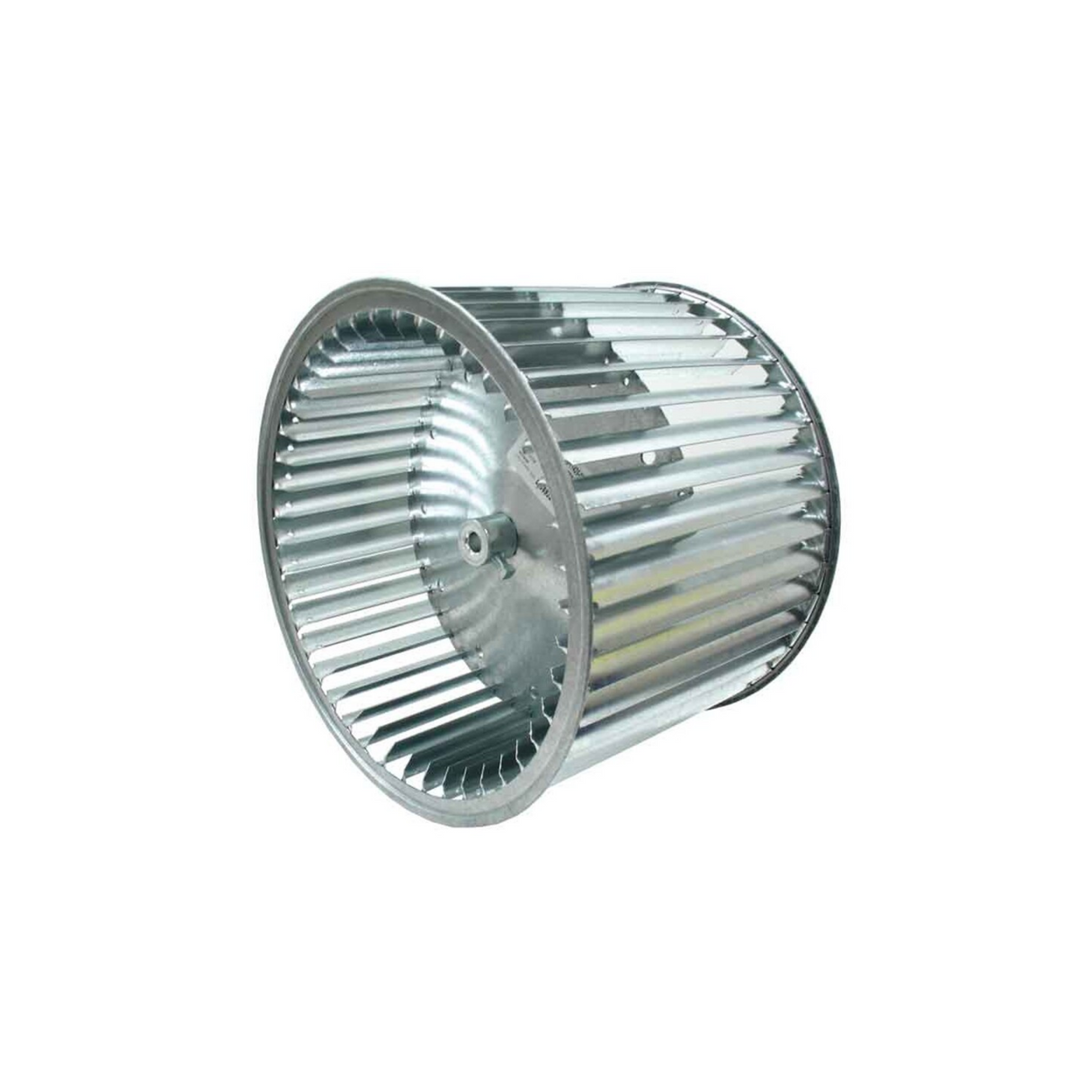

Rheem 70-18629-01 10" x 10" Concave Clockwise Blower Wheel
Have a question? Our team is here to help! Chat with us or call us: 806-763-9323 / If you need Next Day Shipping, call us!
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Specifications:
Manufacturer: Rheem
Manufacturer Part Number: 70-18629-01
Product Type: Blower Wheel
Disc Setback: Outside Edge of Disc to End of Wheel Opposite Hub Dimension C: 5 3/8"
Hub Side Disc Shape: Concave
Hub Length Dimension B: 1 1/8"
Keyway: None
No. of Blades: 48
No. Set Screws: 1
Nominal Hub Bore Shaft Size Dimension E: 1/2"
Nominal Size: 10" x 10"
Outside Edge of Disc to Outside End of Hub Dimension A: 1/32"
Overall Diameter Dimension D: 10 5/8"
Overall Width Dimension W: 10 5/8"
Facing Hub Rotation Direction: CW
Dimensions: 12.95" x 12.9" x 13.25"
Weight: 8.79 lb.
