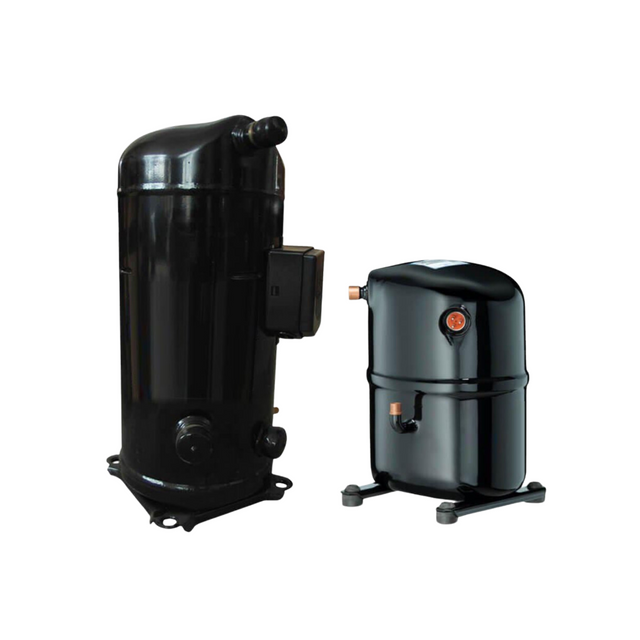

Copeland ZR125KCE-TF5-950 Scroll Compressor

Specifications:

Manufacturer: Copeland
Manufacturer Part Number: ZR125KCE-TF5-950
Product Type: Compressor
Capacity: 94000 BTU/HR
Type: Scroll
Refrigerant: R-22
Input Voltage: 575V
No. of Phases: 3
Frequency: 60 Hz
Rated Load Current: 12 A
Max. Continuous Current: 16.8 A
Locked Rotor Current: 80.0 A
Crankcase Heater Included?: No
Crankcase Heater Part Number: 44-17402-19
Soundwrap (Brinmar): 68-25217-10
Refrigerant Oil: POE (85-32CST)
Suction Line Location: 4
Suction Line Height: 3 3/4"
Suction Line Configuration: Stub Out
Suction Line Size: 1 1/8"
Discharge Line Locatio: 3
Discharge Line Height: 17 1/2"
Discharge Line Configuration: Stub Out
Discharge Line Size: 7/8"
Overall Compressor Height: 18 7/8"
Mounting Base Dimensions: 7 1/2" x 7 1/2"
Dimensions: 18.5" x 15.5" x 27.5"
Weight: 153 lb
