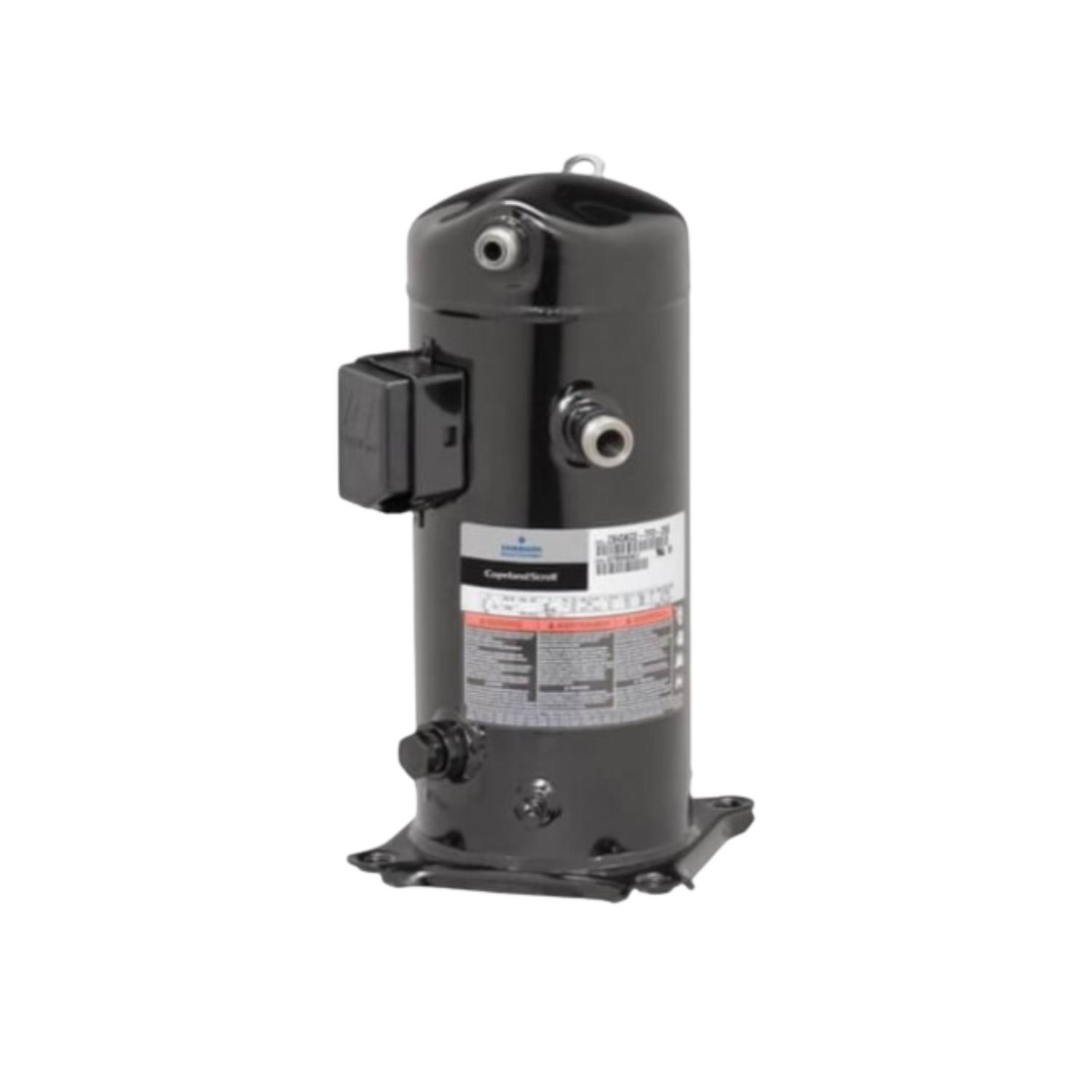

Copeland ZR16K5EPFV800 Scroll Compressor

Specifications:

Manufacturer: Copeland
Manufacturer Part Number: ZR16K5EPFV800
Product Type: Compressor
Capacity: 15500 BTU/HR
Type: Scroll
Refrigerant: R-22
Input Voltage: 208V
Input Voltage: 230V
No. of Phases: 1
Frequency: 60 Hz
Run Capacitor: 30/370 uF/V
Start Kit: SK-A1
Kick Start: 42-TO5
Start Relay P/N: 42-25105-01
Start Capacitor: 88-106/330 uF/V
Start Capacitor Part Number: 43-17075-04
Rated Load Current: 9.3 A
Max. Continuous Current: 13.0 A
Locked Rotor Current: 40.3 A
Crankcase Heater Included?: No
Crankcase Heater Part Number: 44-17402-44
Soundwrap (Brinmar): 68-25217-10
Refrigerant Oil: POE (85-32CST)
Suction Line Location: 2
Suction Line Height: 10 1/16"
Suction Line Configuration: Stub Out
Suction Line Size: 3/4"
Discharge Line Location: 3
Discharge Line Height: 14 1/4"
Discharge Line Configuration: Stub Out
Discharge Line Size: 1/2"
Overall Compressor Height: 15 1/4
Mounting Base Dimensions: 7 1/2" x 7 1/2"
Dimensions: 13.5" x 15" x 20"
Weight: 52 lb
