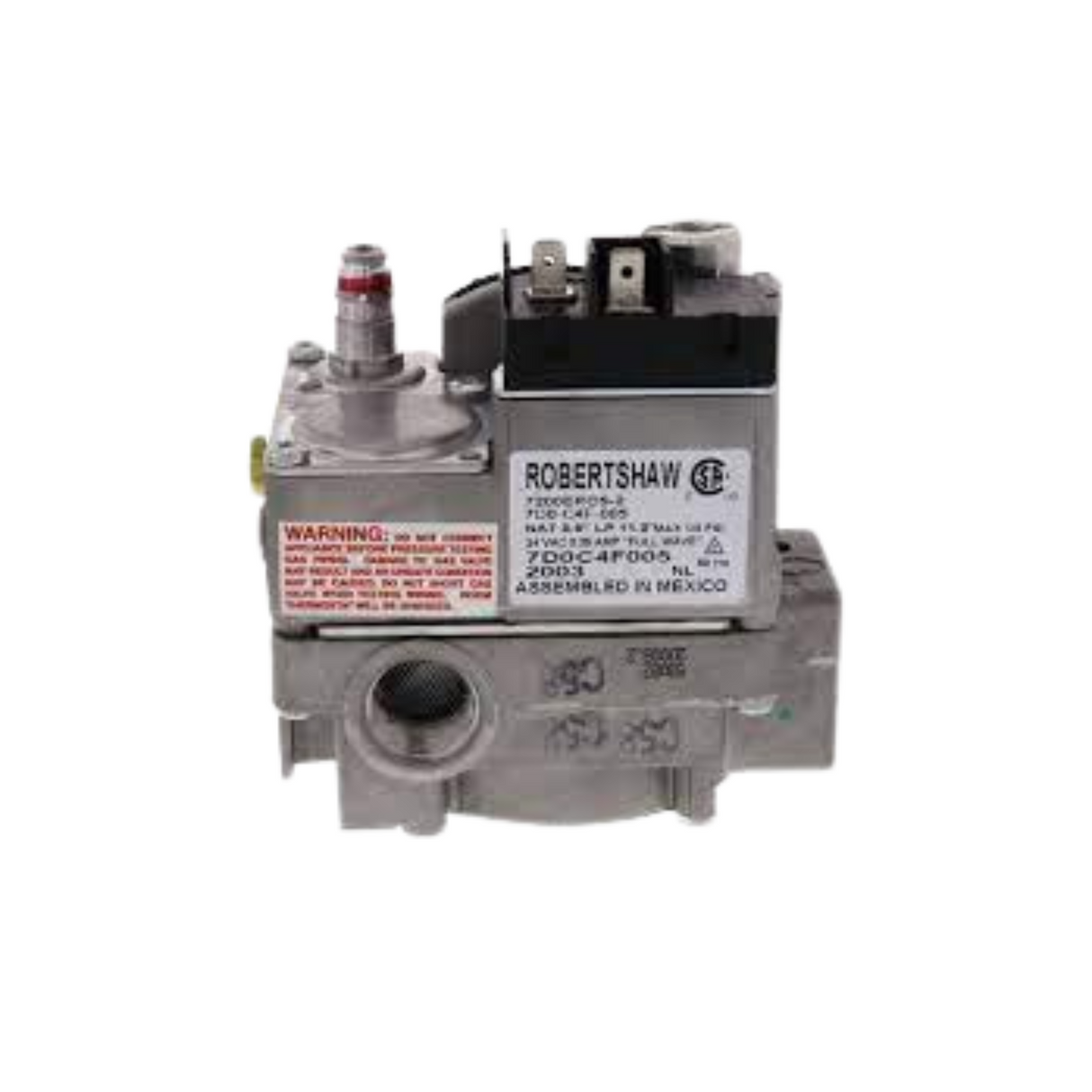

Robertshaw 720-472 150000 BTU/H Step-Open Gas Valve w/ Convertible Regulator 1/2"

The Robertshaw® 720 Series 24 Volt Dual Gas Valve is a six-function gas valve incorporating a manual valve, safety shut-off magnet, dual automatic valves, main gas regulator, and pilot adjustment. Models are available with and without a pressure regulator. Uni-Kit® models are factory set at 3.5” WC for natural gas, but can be converted to LP by installing the regulator conversion kit included.The wiring connections, manual selector and adjustments are easily accessible on top of the valve. With a 3-9/16”swing radius, the 720 Series lends itself well to replacing many OEM valves. Valve can be mounted in any position except upside down.

Features:

Gas cock dial marking Off - Pilot - On
Pilot outlet 1/4” tubing
Ambient temperature of -40°F to 175°F
Combination screw/spade terminal type
Maximum inlet pressure 14” WC (0.5 PSI)
Standard NEMA terminals
Inlet filtered screen
Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures
Multiple actuators available
RoHS compliant

Specifications:

Manufacturer: Robertshaw
Manufacturer Part Number: 720-472
Series Application: 24V Dual
Pressure Regulation: 3.5" WC Natural or 11.0" LP Convertible Gas
Capacity: 150,000 BTU
Reducer Bushing (NPT): (1) 1/2" x 3/8"
Inlet Size: 1/2"
Electrical Rating: 24V AC @ 0.5 Amps, 50/60 Hz
Pilot: 1/4" tubing
Outlet Size: 1/2"
Side Outlets: 1/2" FPT with plugs
Maximum Inlet Pressure: 14" WC (1/2 PSI)
