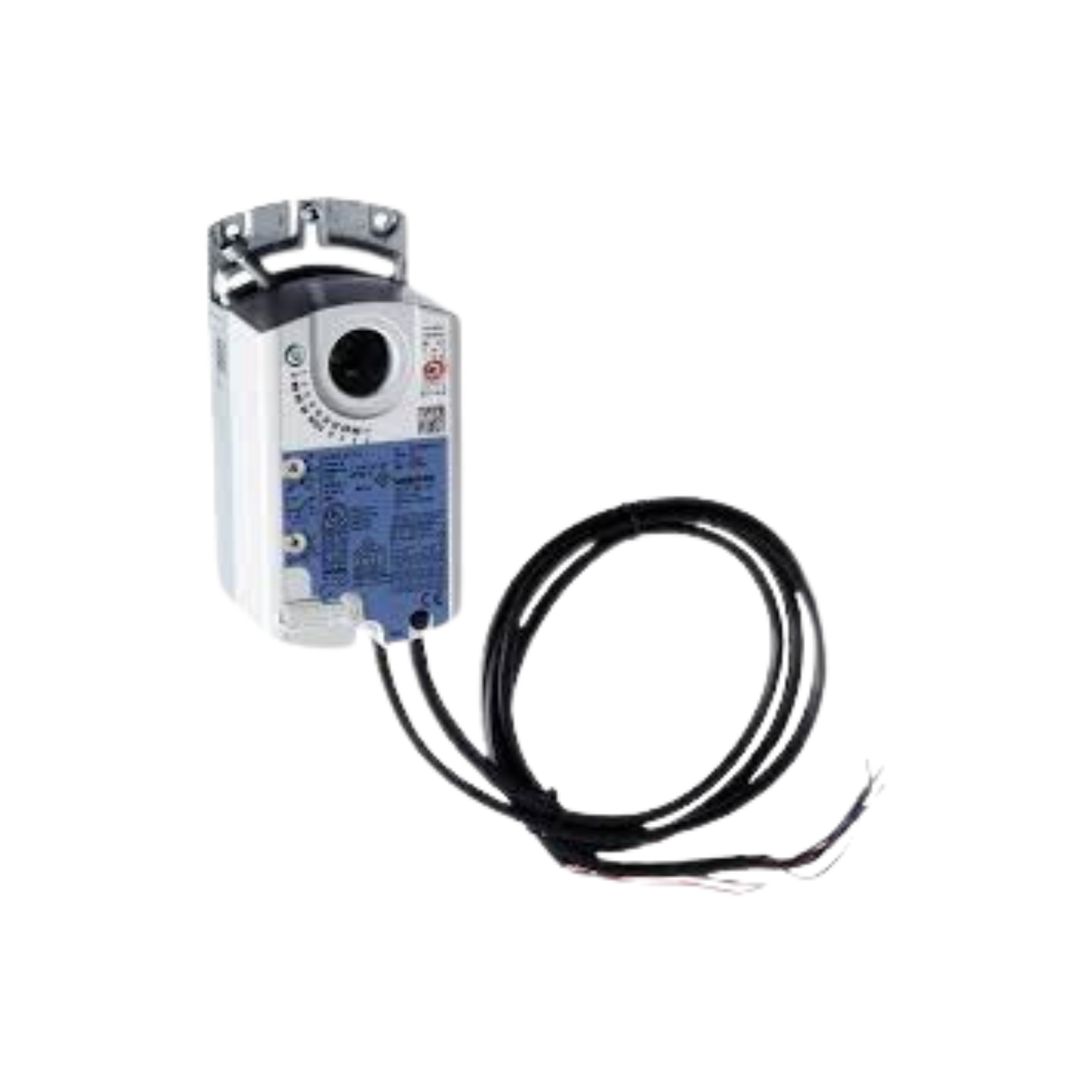

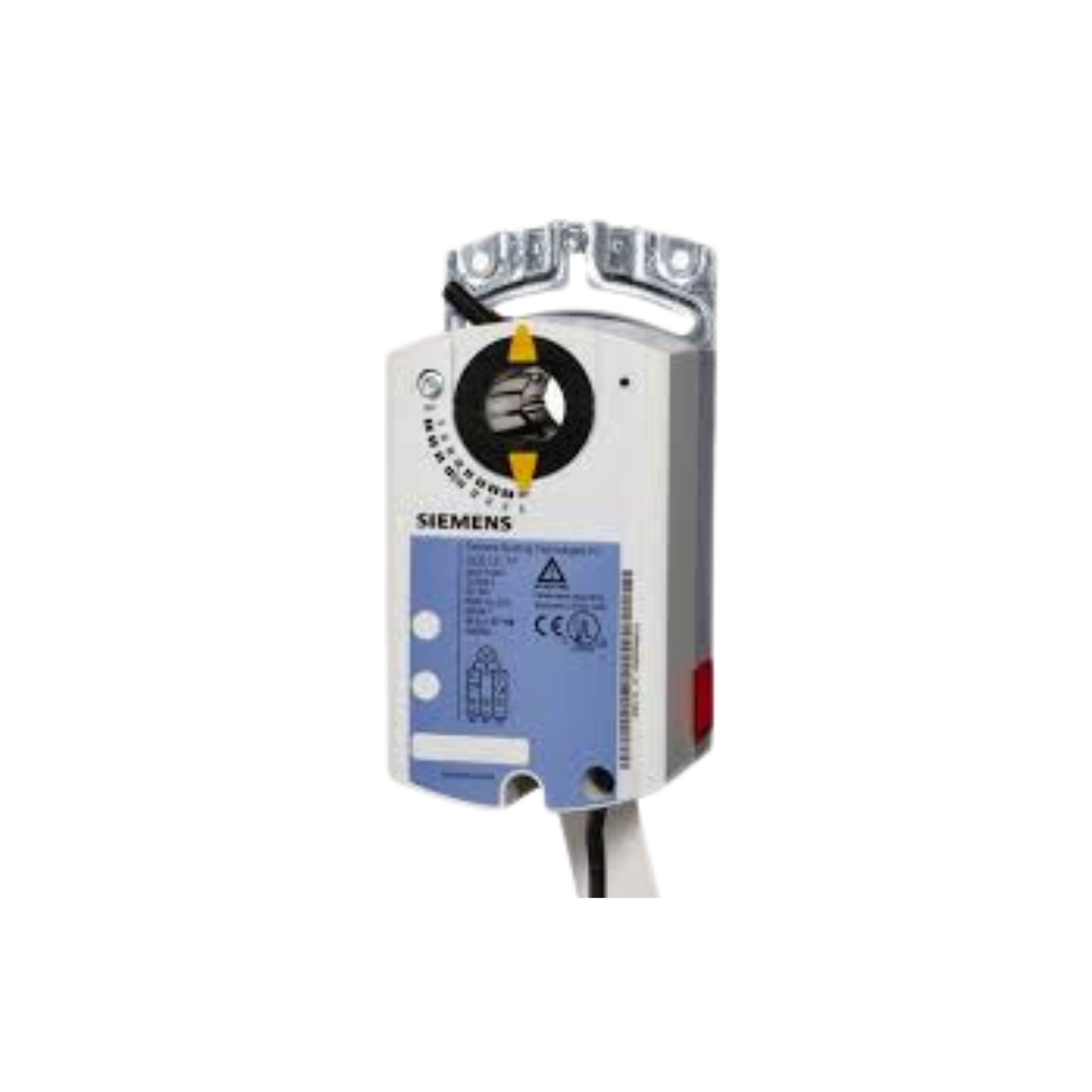

Siemens Building Technology GDE164.1P 44 lb-in 24 VAC Non-Spring Return Damper Actuator
Siemens Building Technology GDE164.1P 44 lb-in 24 VAC Non-Spring Return Damper Actuator is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Siemens Building Technology GDE164.1P 44 lb-in 24 VAC Non-Spring Re...
Description
Description
The OpenAir GDE Series Direct‑coupled 24 VAC Non‑spring Return Rotary Electronic Actuator is designed for 0 to 10 VDC or floating control of building HVAC dampers. The OpenAir GDE Series Damper Actuators re used in Constant or Variable Air Volume installations for the control requiring up to 44 lb.‑in. (5 Nm) torque. Models are available with either a universal cable for wiring in conduit or a plenum‑rated cable for applications where conduit is not required.
Features:
N Versions Designed for Under Floor Installation (Pluggable Cable Connections)
Self‑Adapting Capability for Maximum Flexibility in Damper Positioning
Modulating Actuators Contain Built‑In Feedback
Easy‑to‑See Position Indicator
Quiet, Low‑Power Operation
Manual Override
Compact Design
Specifications:
Manufacturer: Siemens Building Technology
Manufacturer Part Number: GDE164.1P
Product Type: Damper Actuator
Voltage Rating: 24 VAC
Frequency Rating: 50/60 Hz
Torque: 44 lb-in
Positioning Time: 50 Hz - 108 Seconds, 60 Hz - 90 Seconds
Angular Rotation: 90 Degrees
Auxiliary Switch: 2
Ambient Humidity: 95% Relative Humidity
Actuator Type: Non-Spring Return
Dimensions: 10.25" x 6.65" x 3.25"
Weight: 3.0 lb.
