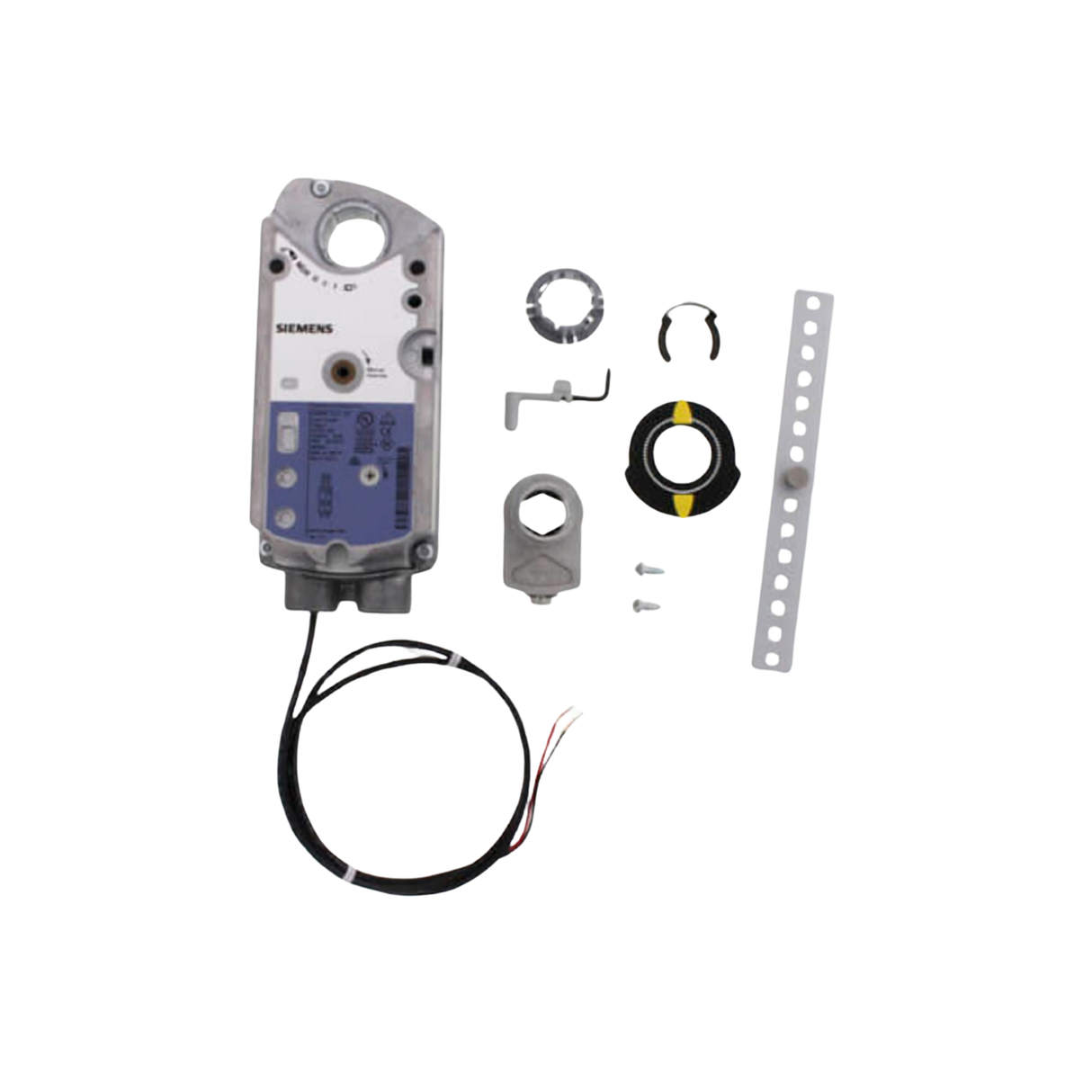

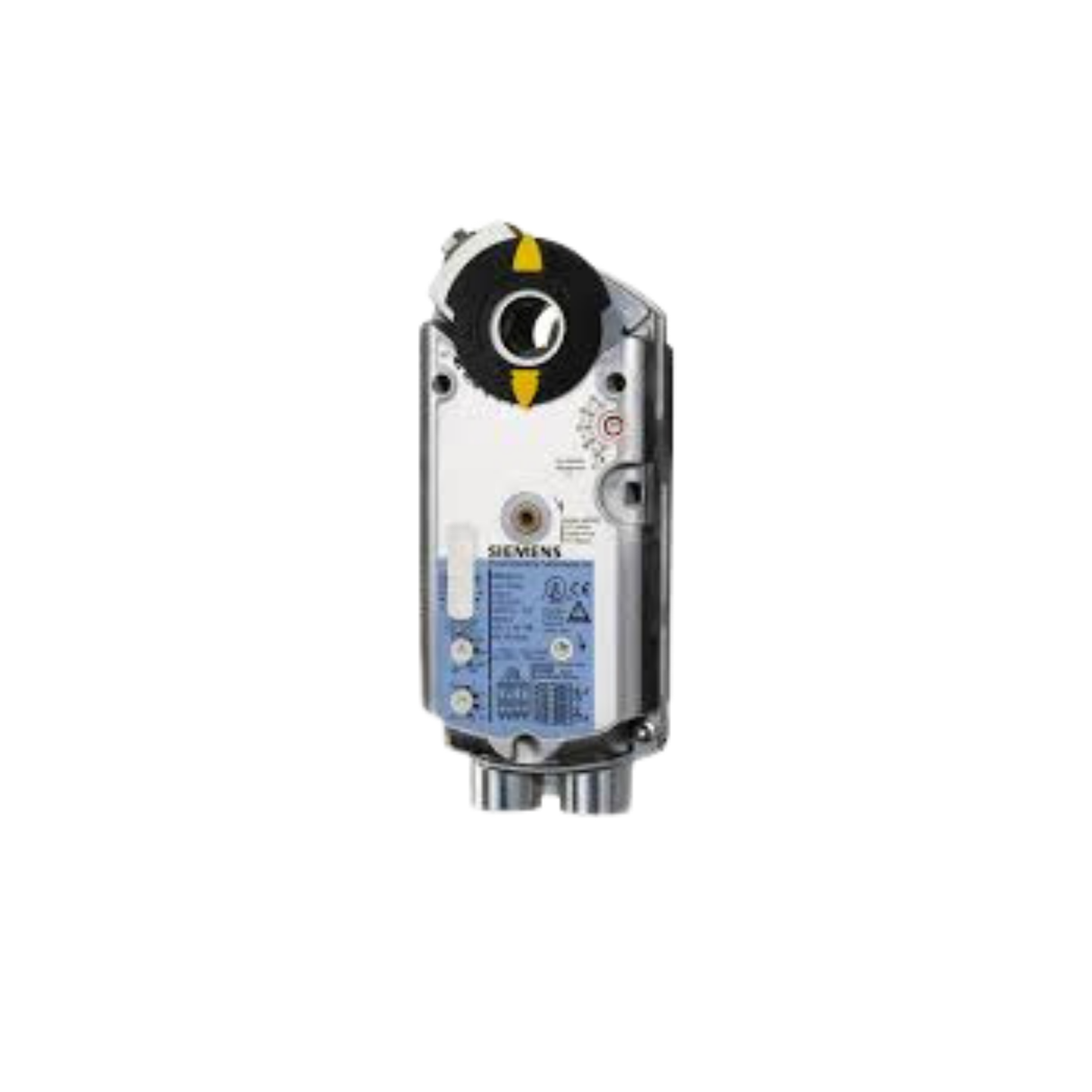

Siemens Building Technology GMA131.1U 24 VAC 62 lb-in Spring Return Actuator
Siemens Building Technology GMA131.1U 24 VAC 62 lb-in Spring Return Actuator is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Siemens Building Technology GMA131.1U 24 VAC 62 lb-in Spring Return...
Description
Description
The OpenAir GMA Series Direct‑coupled, Spring Return Electronic Damper Actuators provide modulating, two position and floating control of building HVAC dampers. The OpenAir GMA Series Damper Actuators are ideal for constant or variable air volume installations for the control of return air, mixed air, exhaust, and face and bypass dampers that require up to 62 lb.‑in. of torque. The actuators are designed for applications where the damper is required to return to a fail‑safe position when there is a power failure. Models are available with either an appliance cable for wiring in conduit or a plenum‑rated cable.
Features:
Floating Control Models Available with Feedback Potentiometer
Small Actuator Footprint with 62 Lb.‑In. of Torque
All Modulating Types Contain Built‑In Feedback
Mechanical Range Adjustment Capability
Unique Self‑Centering Shaft Coupling
Integral 1/2‑Inch Conduit Connector
Bi‑Directional Fail‑Safe Spring Return
Brushless DC Motor Technology
Easily Visible Position Indicator
Manual Override
Specifications:
Manufacturer: Siemens Building Technology
Manufacturer Part Number: GMA131.1U
Product Type: Actuator
Voltage Rating: 24 VAC
Torque: 62 lb-in
Actuator Type: Spring Return
Control Signal: Floating
Mounting: NEMA 1
Dimensions: 5.9" x 13.65" x 3.85"
Weight: 5.0 lb.
