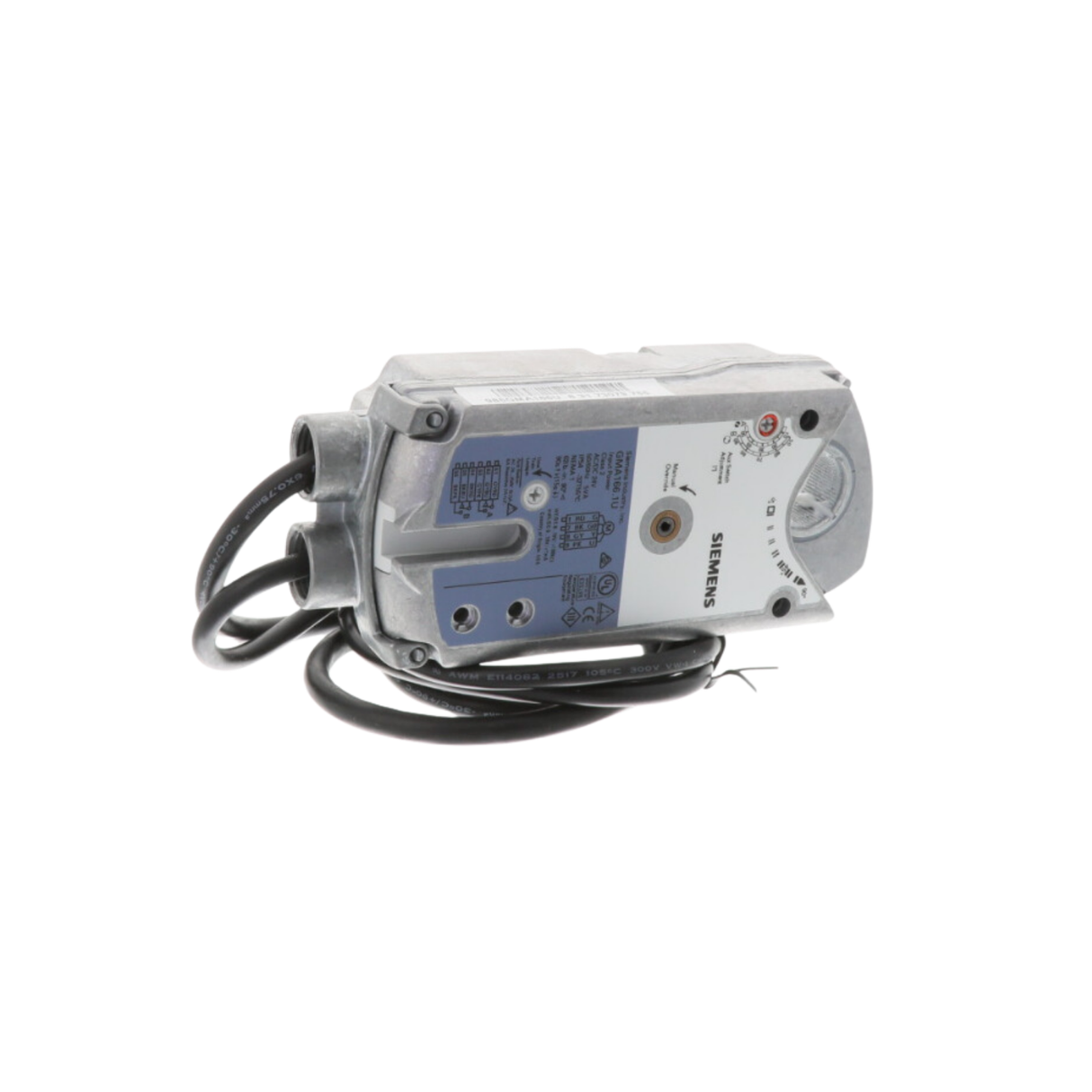

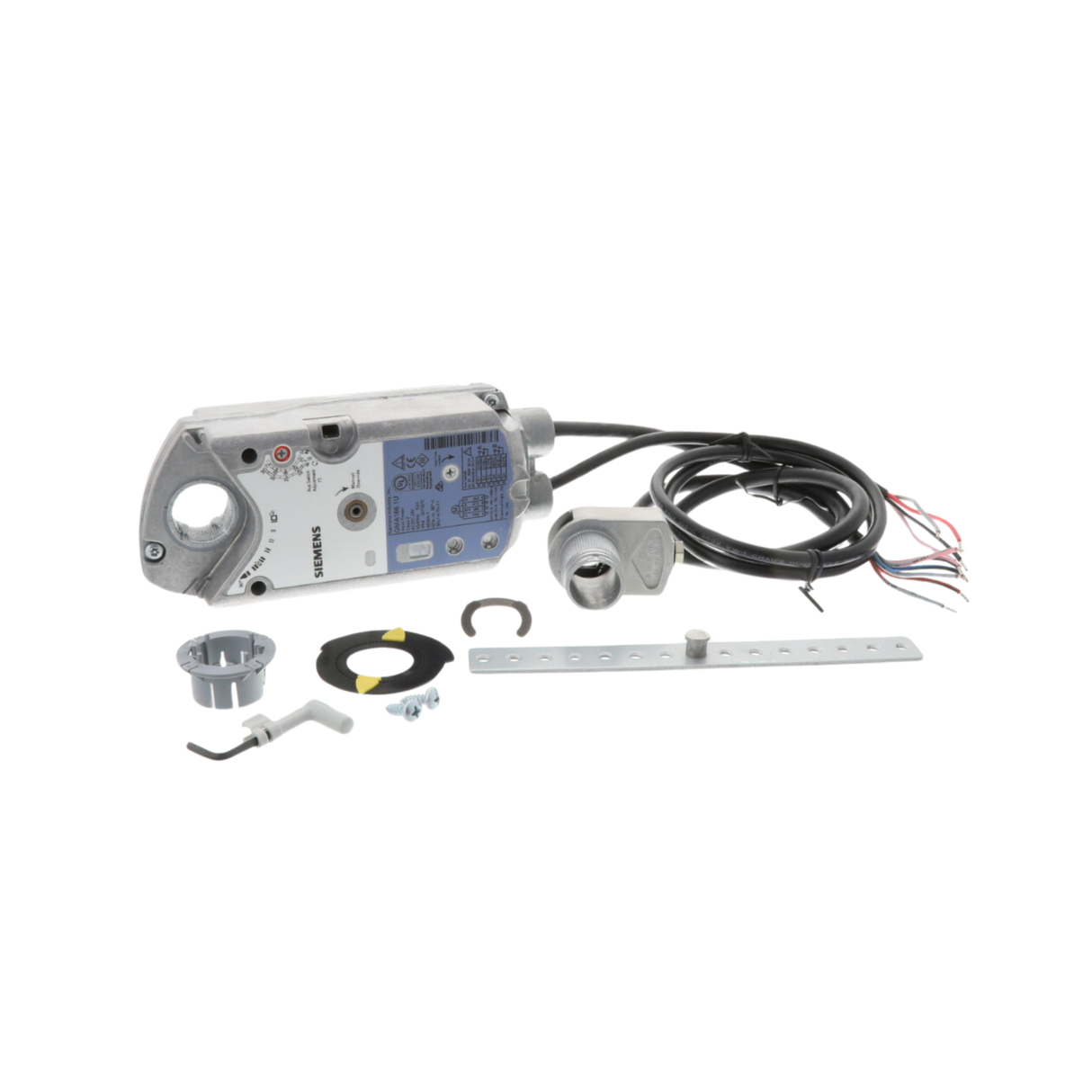

Siemens Building Technology GMA166.1U 24 VAC, Analog Control Signal, 90s Open, 15s Close, 50/60 Hz, 2 Auxiliary Switch, Damper Actuator

Specifications:

Manufacturer: Siemens Building Technology
Manufacturer Part Number: GMA166.1U
Product Type: Damper Actuator
Control or Fire/Smoke Type: Control Damper
Control Signal: Analog
Supply Voltage: 24 VAC
Torque: 62 Pounds-Inches
Positioning Time: 90 Seconds (Open), 15 Seconds (Close)
Position Feedback: Yes
Power Consumption: 5 VA/3.5 W (Running), 4 VA/3 W (Holding)
Operation Ambient Humidity: 95 Percent R.H.
Angular Rotation: 90 Degrees
Frequency: 50/60 Hertz
Auxiliary Switch: 2
Cable Length: 3'
Housing Material: NMEMA 1, Die-Cast Aluminum Alloy Enclosure, IP54 according to EN 60 529
Degree of Protection: IP54
Dimensions: 13.65" x 5.55" x 3.95"
Weight: 3.59 Lb
