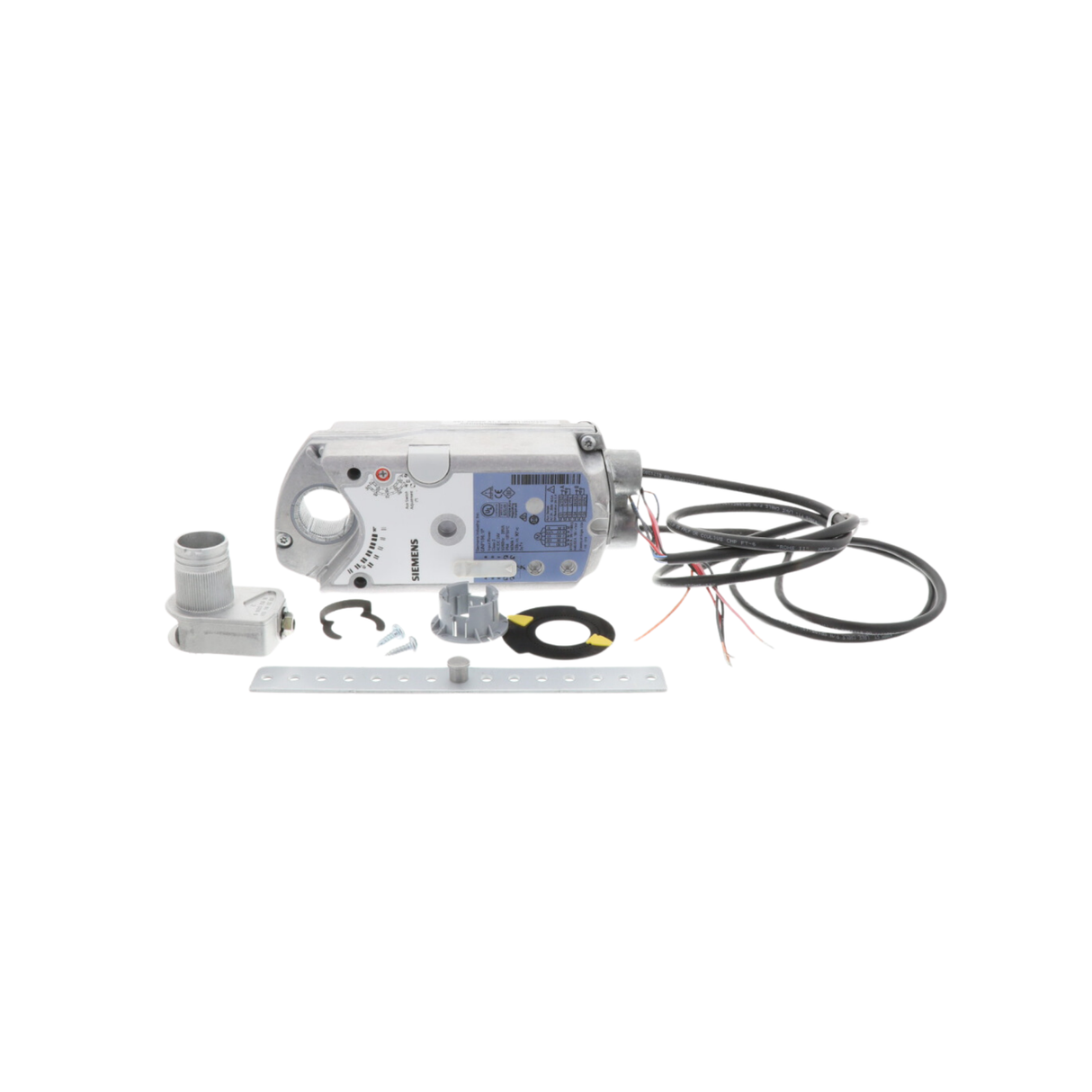

Siemens Building Technology GNP196.1P 28V/19W Power Consumption, 50/60 Hz, 2 Auxiliary Switch, Damper Actuator

The GAP and GNP are 53 lb.-in. fail-safe and fail-in- place damper actuators; Used in critical control environments such as lab and fume hood conditions. These fast-acting damper actuators operate with a runtime of two seconds, provide a wide variety of control signals with 24 VAC/DC operation and have plenum rated cabling.

Specifications:

Manufacturer: Siemens Building Technology
Manufacturer Part Number: GNP196.1P
Product Type: Damper Actuator
Actuator Type: Electronic Fire and Smoke
Torque: 53 Pounds-Inches
Fail Safe: Yes
Position Feedback: Yes
Positioning Time: 2 Seconds (Open), 2 Seconds (Close)
Power Consumption: 28V/19W
Ambient Temperature - Operation: 0 to 130 Degree Fahrenheit
Supply and Operating Voltage: 24 VAC/DC
Frequency: 50/60 Hertz
Auxiliary Switch: 2
Cable Length: 3
Housing Material: NEMA 1, Die-Cast Aluminum Alloy Enclosure, IP54 according to EN 60 529
Degree of Protection: IP54
Dimensions: 13.6" x 5.55" x 3.85"
Weight: 3.36 Lb
