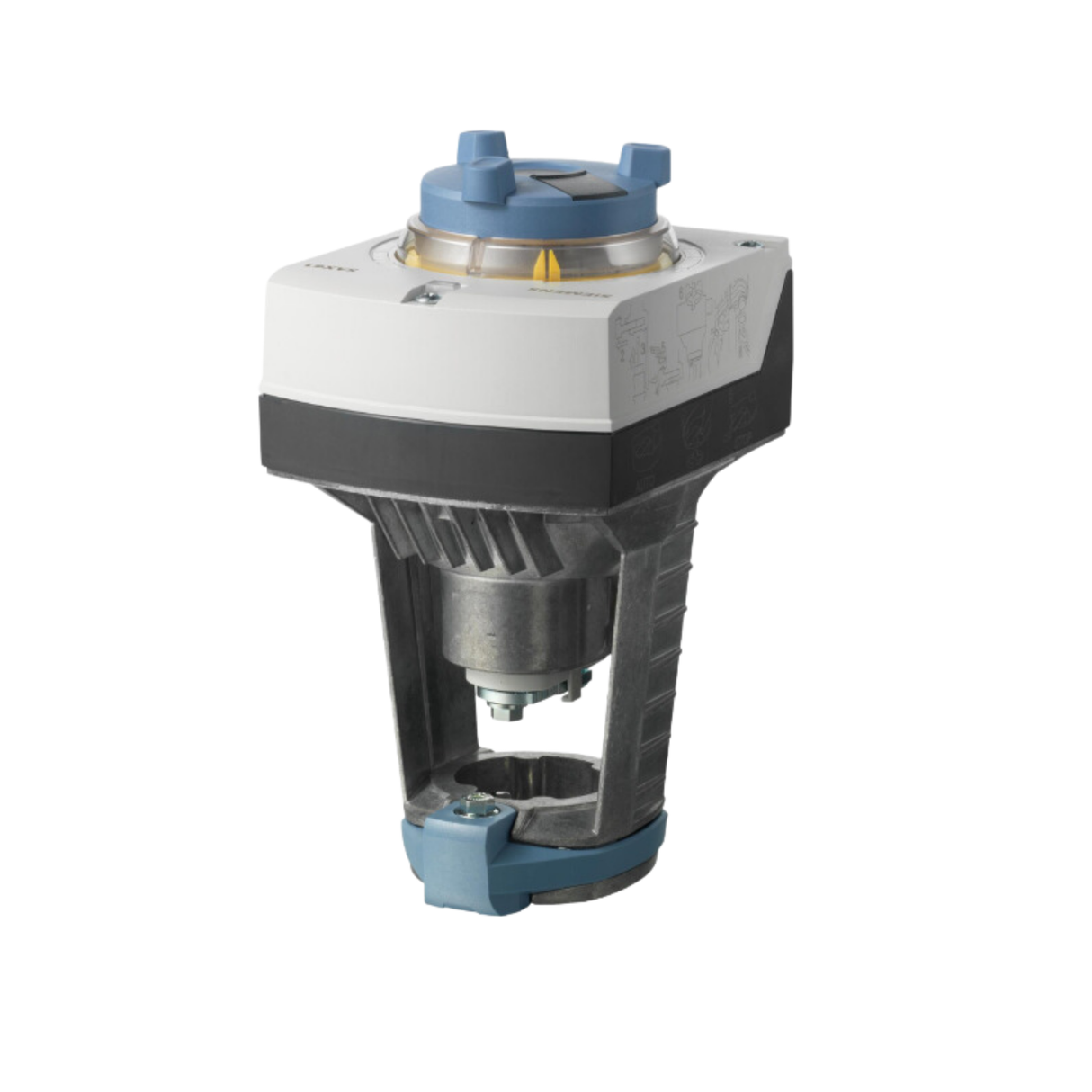

Siemens Building Technology SAX81.03U 24 VAC, 50/60 Hz, 30s Positioning Time, IP54, 3-Positioning Flowrite Actuator

The Flowrite SAX Valve Actuator is used with Flowrite Valves with 3/4-inch stroke. This electronic valve actuator requires 24 Vac supply to provide floating control of the valve. Other features of this valve actuator include UL listed for plenum installations, direct-coupled installation requires no special tools or adjustments, manual override with visual postion indication, non-spring return, and 180 lb (800N) nominal force with 30 sec run time.

Specifications:

Manufacturer: Siemens Building Technology
Manufacturer Part Number: SAX81.03U
Product Type: Flowrite Actuator
Fail Safe: No
Positioning Signal: 3-Position
Power Consumption: 5 VA
Mounting Position: Nema 1 (Interior only), Upright to Horizontal
Operation Ambient Humidity: 95 Percent R.H.
Operating Voltage: 24 VAC/DC
Supply Voltage: 24 VAC
Frequency: 50/60 Hertz
Stroke: 20 mm
Positioning Time: 30 Seconds
Operation Ambient Temperature: -5 to 55 Degree Celcius
Degree of Protection: IP54
Spring Return Function: No
Dimensions: 6.25" x 10.35" x 5.1"
Weight: 4.21 Lb
