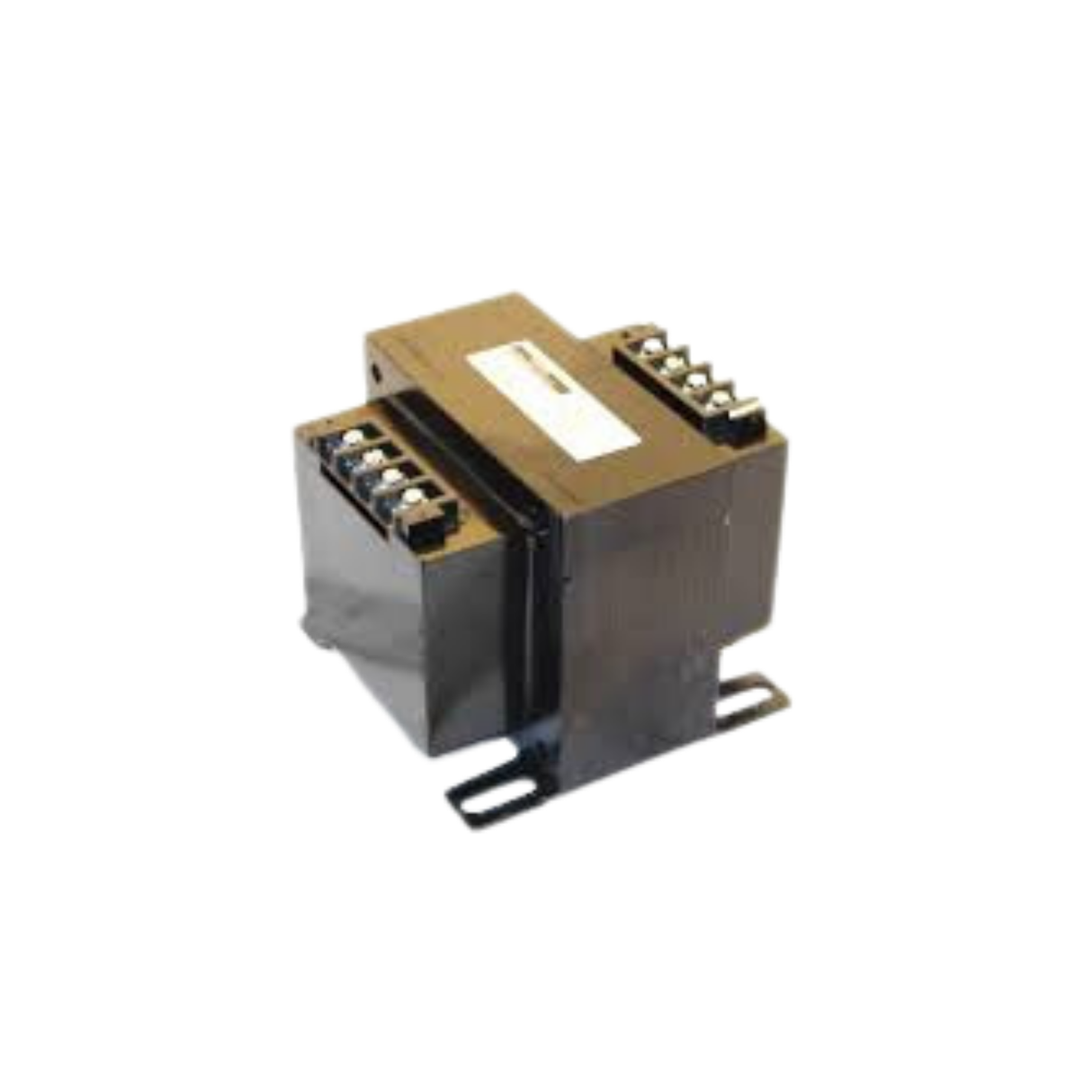

Siemens Industrial Controls MT0500M 240/480 VAC Primary, 120/240 VAC Secondary 500 VA Control Transformer

The MT series from Siemens offers a variety of quality, high performance control transformers in a silicon steel-laminated core and copper magnet wire for increased transformer efficiency. The range is epoxy-encapsulated to resist moisture, dust and industrial contaminants and is UL listed and CSA certified.

Features:

Epoxy encapsulated (50 to 750 VA), epoxy resin impregnated (1 to 5 kVA)
Completely seals the transformer coils against moisture, dust, dirt and industrial contaminants for maximum protection in hostile and industrial environments
Fuse clips (most models), factory mounted for integral fusing on the secondary side to save panel space, save wiring time and save the cost of buying an add-on fuse block or kit
Integrally molded barriers, between terminals and transformer, protect against electrical creepage, up to 30% greater terminal contact area permits low loss connections, extra deep barriers reduce the chance of shorts from frayed leads or careless wiring
Terminals, molded into the transformer, are difficult to break during wiring, a full quarter-inch of thread on the #10-32 terminal screws prevents stripping and pullout
Jumpers supplied, two jumper links are standard with all transformers which can be wired for dual primary voltages
Laminations are built with silicon steel to minimize core losses and to increase optimum performance and efficiency
Insulation materials are of the highest rating available for the temperature class
Robust design
0.29 A max at 240 VAC

Specifications:

Manufacturer: Siemens Industrial Controls
Manufacturer Part Number: MT0500M
Product Type: Control Transformer
Primary Voltage: 240/480 VAC
Secondary Voltage: 120/240 VAC
Frequency Rating: 50/60 Hz
Current Rating: 0.29 A
Power Rating: 500 VA
No. of Phase: 1
Connection Type: Screw
Mounting: Slotted
Dimensions: 9.85" x 9.55" x 8.45"
Weight: 13.69 lb.
