Space-Ray LTU175-40-N5 - 175K BTU, 40ft Emitter, Single Stage, Natu...
Description
Description

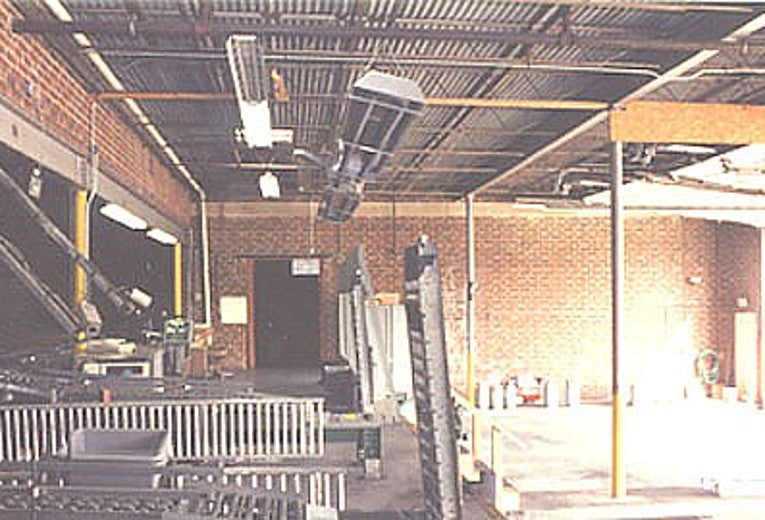

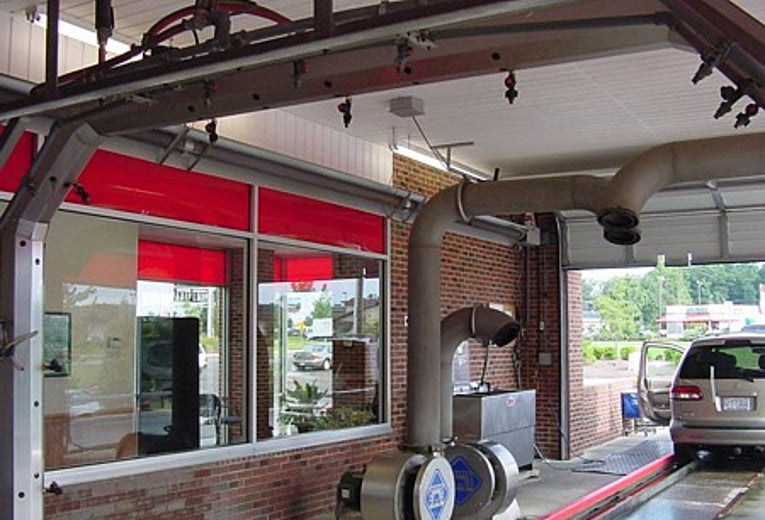

From warehouses, fire stations and manufacturing plants to automotive repair facilities, aircraft hangars, greenhouses and restaurants, Space-Ray LTU Infrared Gas Heaters are designed to provide comfortable, efficient heating at an affordable cost, regardless of the size of your facility.
Comes with: Line Voltage Thermostat (0320900), 50' Chain Kit (41690500), 4" Roof Vent Cap (30297040).
Dimensions:
Total U-Tube Length: 40ft
Overall Heater Length: 22ft 6.5in
Reflector Width: 28 in
Reflector Height: 7 in
Ship Weight: 246
Hanging Weight is 80% of Ship Weight.
Minimum Install Height: 15ft
Pull-Through System
- l Pull-through system – the products of combustion are pulled through the combustion chamber for increased radiant efficiency and greater safety.
- Vertical, horizontal or common venting.
- CSA design certified for maximum 75 ft. horizontal sidewall venting.
- Draft inducer is equipped with permanently lubricated, totally enclosed, fan cooled, and heavy duty ball bearing motor for maintenance free operation.
- Draft inducer assembly can be used for through-the-roof venting or rotated 45° or 90° for horizontal venting.
- No draft hoods, totally enclosed combustion chamber.
-
CSA design certified for vented or indirect vented operation.
Radiant Emitter Tube System
- All radiant emitter tubes are 16 gauge, 3” or 4” O.D. calorized steel.
- Body assembly consists of 5,’ 10’ or 15’ body sections.
- Aluminized steel or alumi-therm (titanium alloy) emitter tubes are calorized for long life and high radiant efficiency – will not flake or peel, and are corrosion resistant.
- The calorization process produces an emitter tube which is highly radiant absorptive on the interior and highly radiant emissive on the exterior.
- Ideal for high humidity or corrosive applications.
- Suitable for horizontal or angle mount up to 45°.
- 5 year limited warranty on the emitter tube.
Burner & Control Systems
- Burner & Control Systems
- Monitoring light system for on-line diagnosis.
- One piece cast iron burner with stainless steel flame retainer.
- 10 year limited warranty on burner.
- Inside or outside air for combustion.
- CSA design certified for 50 ft. fresh air inlet duct
- Burner inspection sight glass.
- 36” stainless steel flexible gas connector included with control box.
- Slow opening and redundant combination gas valve for quiet ignition and added safety.
- Direct Spark ignition system with 100% Gas Shut-Off Safety Control (30 second pre-purge).
- Diaphragm Air Proving Switch for proof of venting before gas flow and ignition.
- Quick slip-on electrical connectors.
- Uncomplicated maintenance access
Reflector System
- Shipped factory pre-assembled on tube body to reduce installation cost.
- Highly efficient aluminum reflectors with reflectivity rating of 97.5%.
- Reflector ends are enclosed for maximum radiant heat output and minimum convection loss.
- Optional side deflectors and optional decorative grille.
- Easy-to-use mounting brackets
