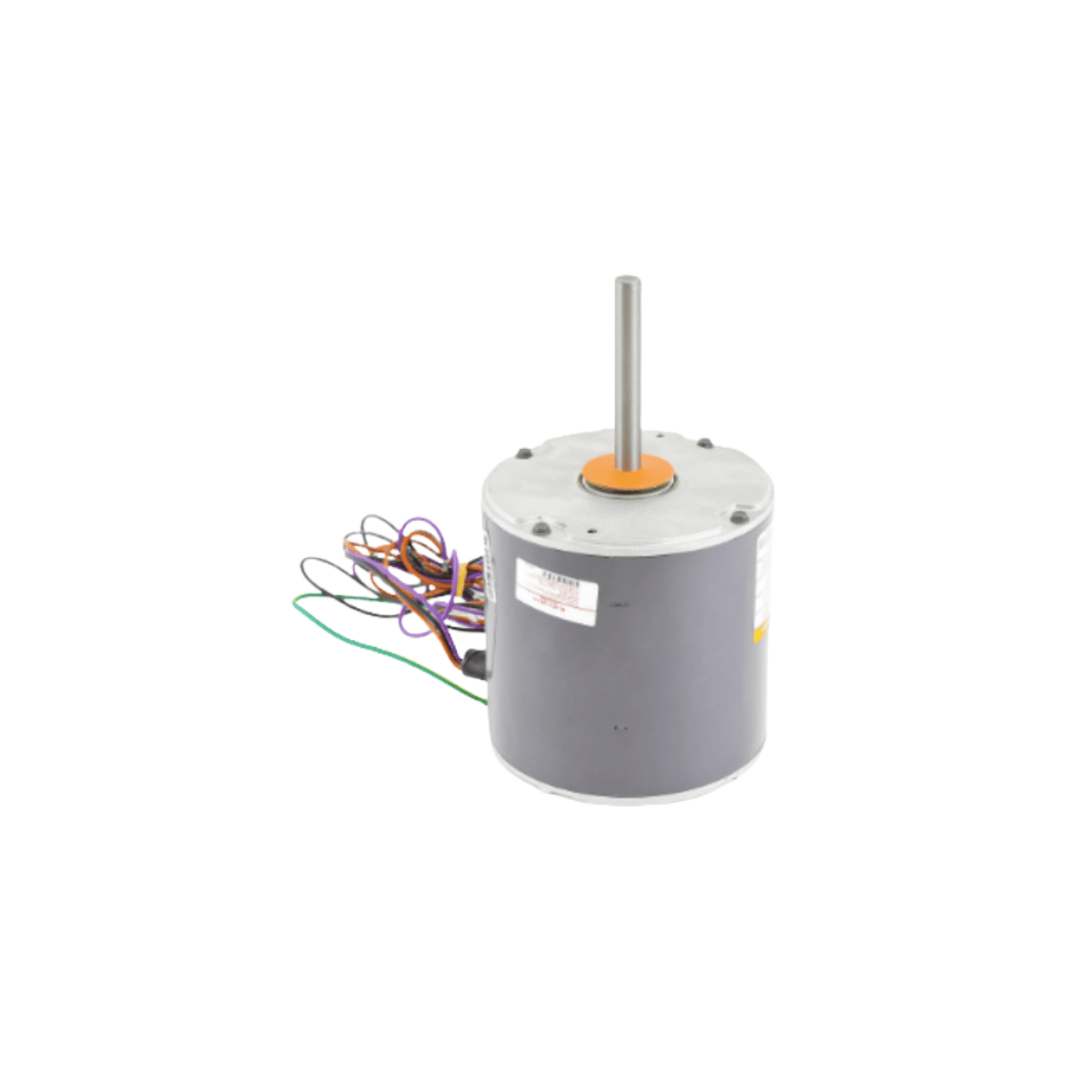

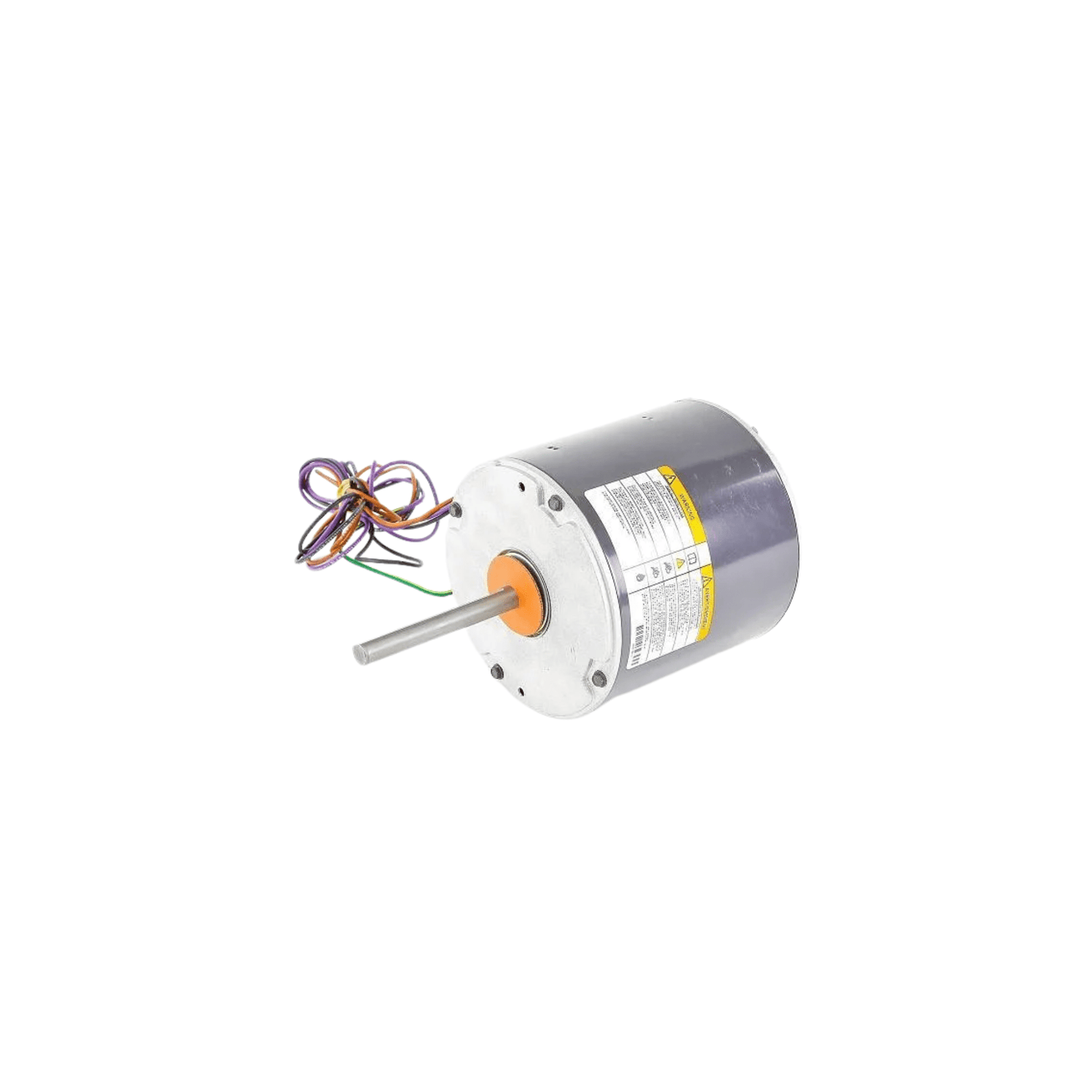

Trane MOT18627 460 V 1/4 HP 830 RPM Counter Clockwise Motor

The Trane MOT18627 is a 1/4 HP, single-phase, 460 V condenser or blower motor, designed to operate at around 830 RPM in a counterclockwise (CCWLE) rotation. It features a NEMA 48 frame (also referred to as 48FR) and is commonly used in various Trane HVAC systems.

Specifications:

Manufacturer: Trane
Manufacturer Part Number: MOT18627
Product Type: Motor
Voltage Rating: 460 V
Frequency Rating: 50/60 Hz
Current Rating: 1.8 A
Motor Size: 1/4 HP
Frame Size: 48
RPM: 830
No. of Phase: 1
No. of Speed: 1
Enclosure: Totally Enclosed Air-Over
Rotation: Counter Clockwise
Dimensions: 13.25" x 7.3" x 6.95"
Weight: 17.26 lb.
