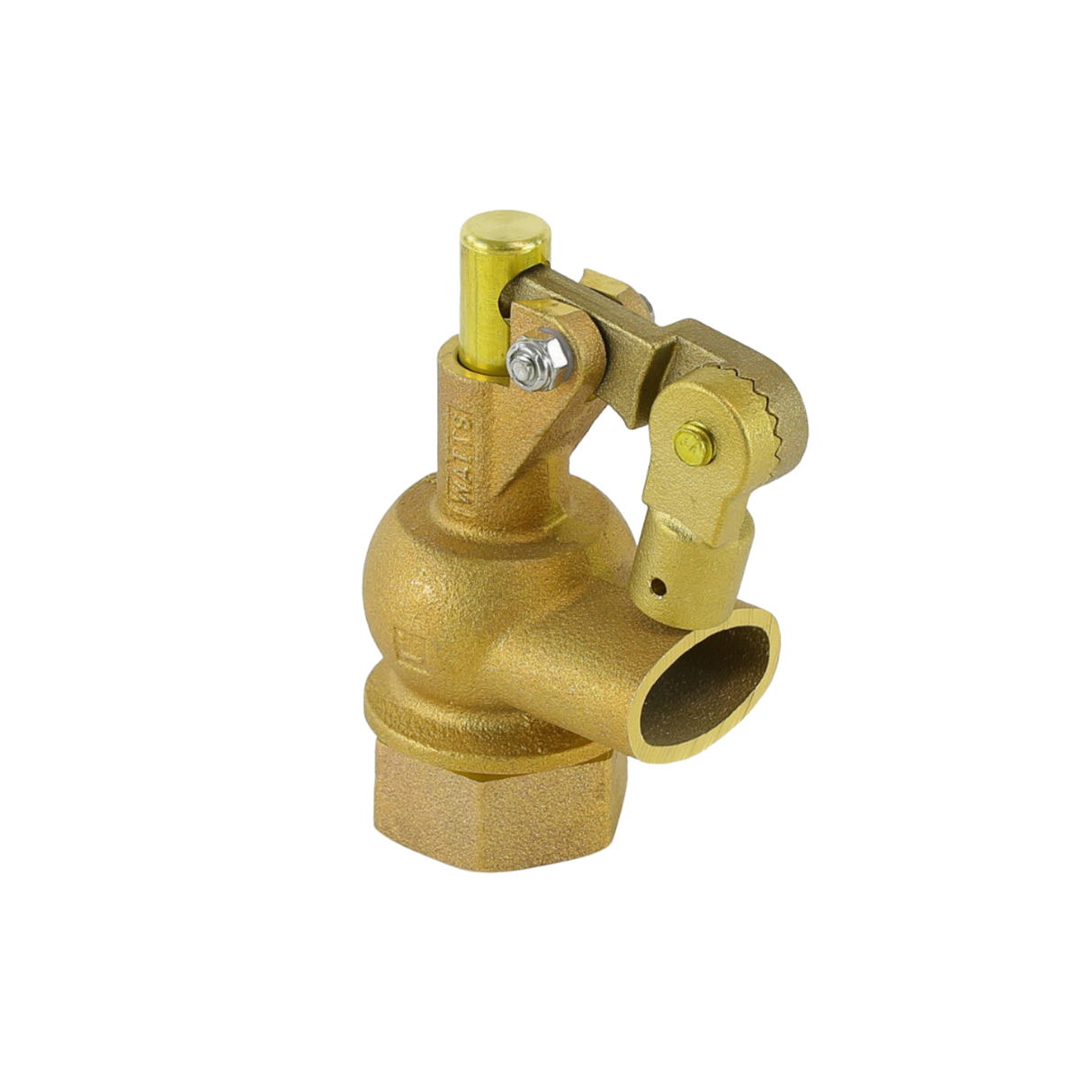

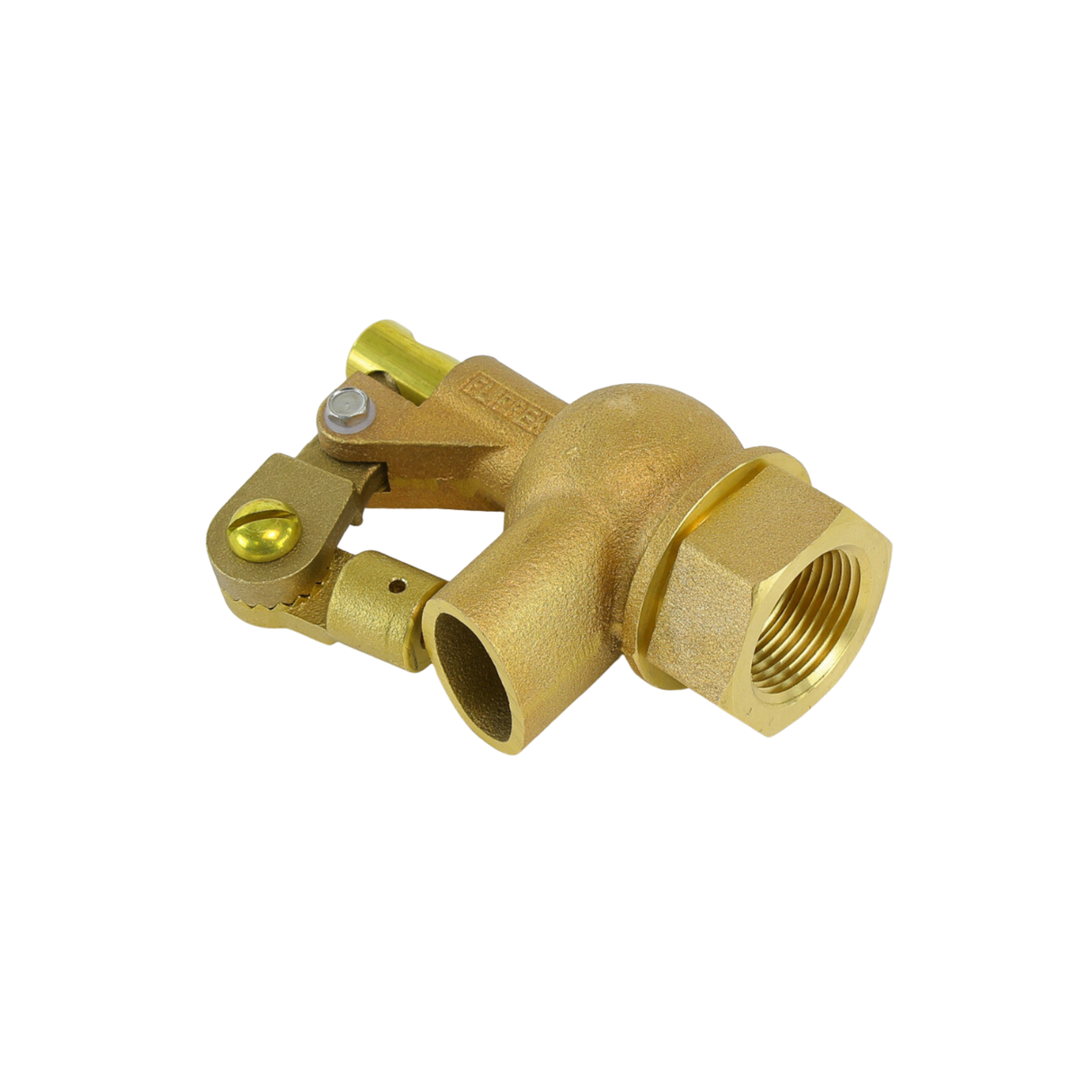

Watts 0780011 1000 Series, 1" x 1" Connection, 165 PSI Max, Float Valve Assembly
Watts 0780011 1000 Series, 1" x 1" Connection, 165 PSI Max, Float Valve Assembly is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Description
Description
This 1 inch heavy duty mechanical float valve is used in commercial, industrial, and agricultural applications for controlling high capacity water flow and can be tank wall-mounted. It is ideal for use in air conditioning, refrigeration, and irrigation systems. This valve has a bronze body with a machine flange on the inlet side with 1 inch female NPT pipe threaded inlet connection and male straight-pipe threaded for locknut outlet connection. It has serrated arms for easy adjustment of water level, bronze long and short arms, replaceable seals, and no-jam single lever action. The maximum pressure is 165 psi (11.4 bar).
Features:
Machined flange
Bronze body
Serrated arms
Replaceable seals
Specifications:
Manufacturer: Watts
Manufacturer Part Number: 0780011
Product Type: Float Valve Assembly
Flow Specifications: 100 GPM at 50 PSI to 150 GPM at 100 PSI
Body Material: Bronze
Inlet 1 Connection Size: 1"
Inlet Pressure: 50 PSI
Maximum Pressure: 165 PSI
Maximum Temperature: 180 Degree Fahrenheit
Outlet Connection Size: 1"
Outlet Connection Type: Plain
Series: 1000
Dimensions: 7.3" x 4.05" x 2.85"
Weight: 1.94 lb
