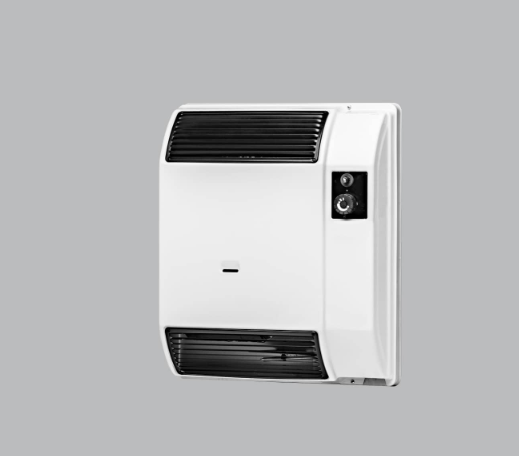

Williams 0743511 High-Efficiency Direct-Vent Furnace 7,400 Btu/hr. LPG

A low profile furnace that may be installed nearly anywhere. Great for homes, apartments, offices, garages and room additions. Natural and Propane models. 7,400 & 17,700 BTU/hr.

• Efficiency Ratings:
  • 7,400 Btu/hr. Series:  72% Thermal Efficiency
  • 17,700 Btu/hr. Series:  76% Thermal Efficiency
• Natural and propane gas models
• Easy installation — all vent material included
• Attractive, durable fresh-white finish
• Unique wall-mount design frees up floor space
• Small, low-profile vent size
• Sealed-combustion safety technology uses no inside room air for operation

• Unique Wall Mount Design
  Furnaces require no floor space.

  Electronic Ignition
  Assures convenient pilot lighting without matches.

  Requires No Electricity:
  Models 0743511 and 0743512 only.

  Dimensions and Clearances:

  Models 0743511 and 0743512

  • 2” to an intersecting wall
  • 10” from the top of the furnace to the ceiling or overhang
  • ¼” to the back wall (0” to spacers)
  • 2” to finished floor
  • 4 ⅛” Wall hole diameter
  • 3 ⅞” Air inlet pipe diameter
  • 2 ⅜” Exhaust pipe diameter
