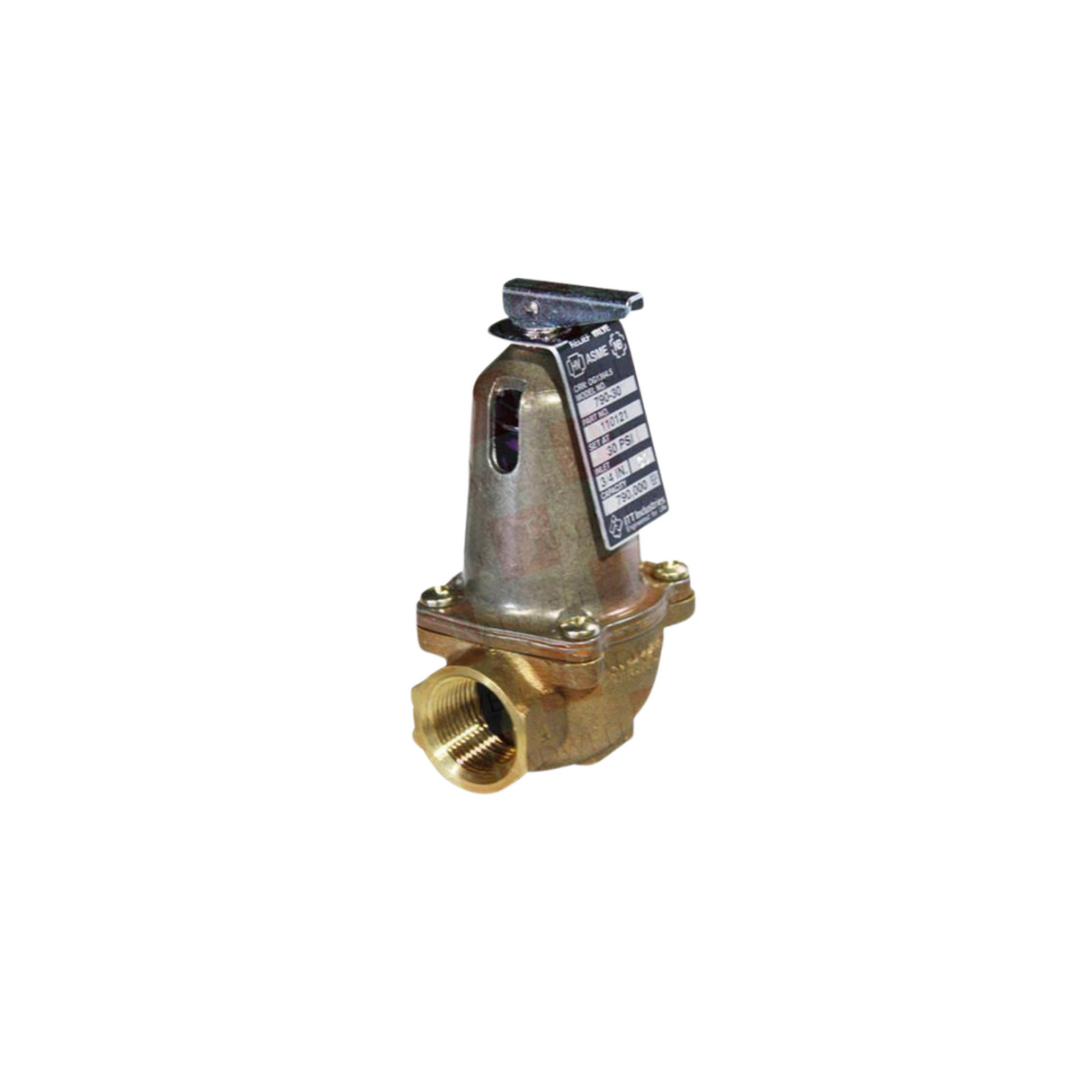

Xylem-Bell & Gossett 110127 790-125 3/4" NPT Brass Pressure Relief Valve

$287.00

Delivery and Shipping

Fedex ground and freight. Free Shipping on everything!

For questions, call us at 806-763-9323

Description

Bell & Gossett model 790-125 bronze hot water relief valve in an angle pattern with a 3/4" inlet and a 3/4" outlet. This valve can be set at 125 psi. Cast iron or bronze safety relief valves are designed for fired and unfired hot water pressure vessels to protect against overpressure conditions. Cast iron models are used for hot water heating boilers and bronze models can be used on direct fired water heaters, or storage tanks with indirect heaters to match the BTU loads of the heat exchangers. Their maximum pressure is 125 psi and their maximum temperature is 250°F.

Specifications:

Manufacturer: Bell & Gossett
Manufacturer Part Number: 110127
Model: 790-125
Body Material: Brass
Valve Application: Hot Water
Valve Size: 3/4"
Valve Connection: NPT
Piping Configuration: Angle
Max Pressure: 150 psi WOG
Weight: 15.00
Inlet Size: 3/4"
Outlet Size: 3/4"
