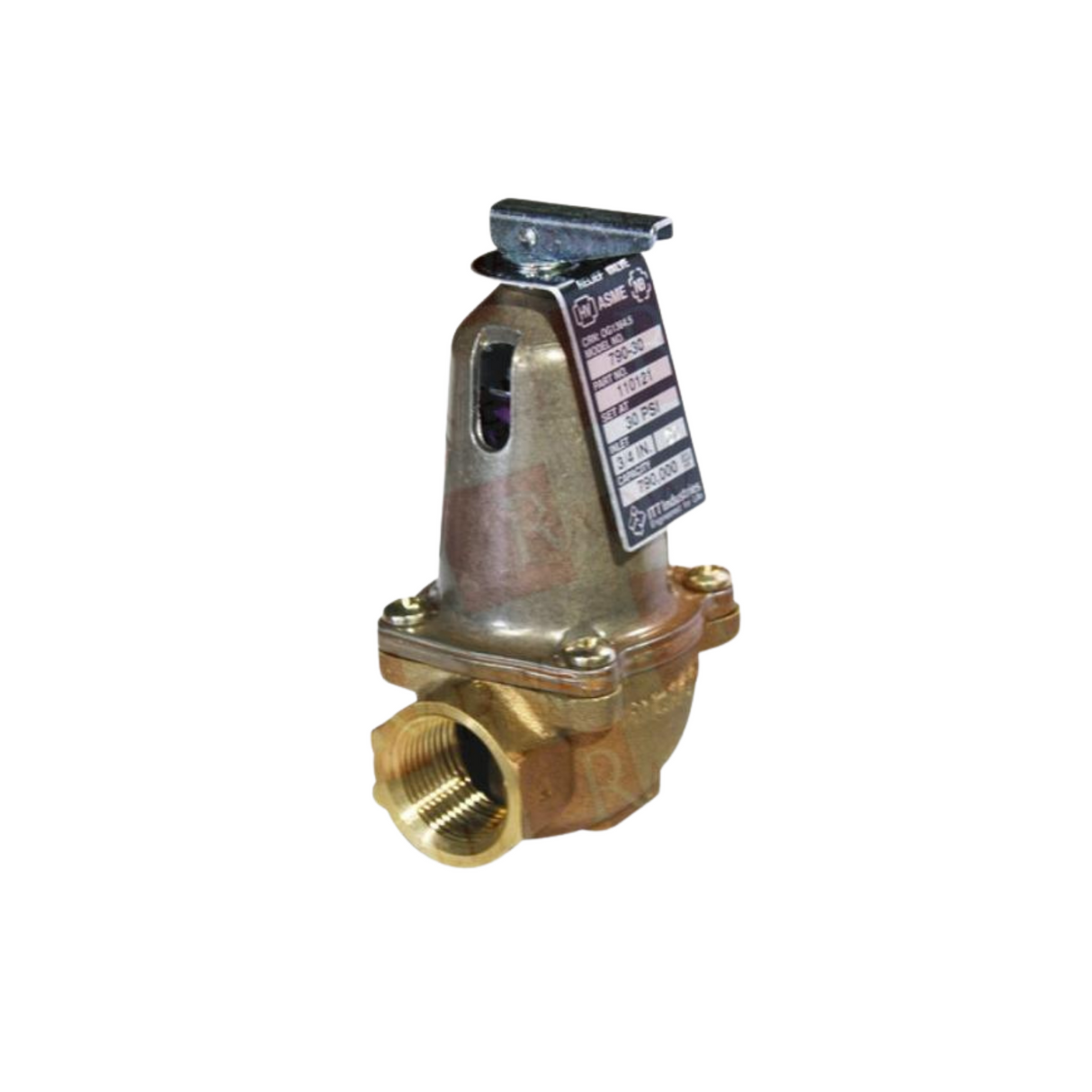

Xylem-Bell & Gossett 110125 790-30 3/4" NPT Brass Pressure Relief Valve
Xylem-Bell & Gossett 110125 790-30 3/4" NPT Brass Pressure Relief Valve is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Xylem-Bell & Gossett 110125 790-30 3/4" NPT Brass Pressure...
Description
Description
Bell & Gossett model 790-30 bronze hot water relief valve in an angle pattern with a 3/4" inlet and a 3/4" outlet. This valve can be set at 30 psi and has a 790,000 BTU capacity. Cast iron or bronze safety relief valves are designed for fired and unfired hot water pressure vessels to protect against overpressure conditions. Cast iron models are used for hot water heating boilers and bronze models can be used on direct fired water heaters, or storage tanks with indirect heaters to match the BTU loads of the heat exchangers. Their maximum pressure is 125 psi and their maximum temperature is 250°F.
Specifications:
Manufacturer: Bell & Gossett
Manufacturer Part Number: 790-30
Body Material: Brass
Valve Application: Hot Water
Valve Size: 3/4"
Valve Connection: NPT
Piping Configuration: Angle
Max Pressure: 1.13 psi WOG
Inlet Size: 3/4"
Outlet Size: 3/4"
